Vlákno založeno Lorraine Lin
Lorraine Linpřidal nové fotoalbum.
94 18 July, 17:33
Spanjaardyou are actually going to make this bird flap its wings? really interesting to see that. where do you get those components if i may ask?
28 July, 16:03
Lorraine Lin AutorThank you everyone!
@Spanjaard, for the wing folding part, I used eyeglass hinges. The motor and lead screw assembly likely comes from a retractable camera module of a smartphone, though I'm not entirely sure—I found it online. The small circuit board is a simple stepper motor driver, made by an electronics hobbyist. I also found it online.
29 July, 12:58
AI enginewhat is that small Linear Actuators going to do the wing folding ? retractable camera module ? or it from lens focus ring ? can you show some video how it moved ?
29 July, 14:34
Alexander GrivonevKinda worried the anchor points of the actuators might rip off, there will be a lot of forces involved...
29 July, 15:27
Lorraine Lin AutorPic18 is the sketch, but the space is not enough for my parts, so the wings can only fold 75-80 degrees.
@AI engine, I guess it's the motor for the pop-up camera of a mobile phone.
1 30 July, 12:25
Mike ThomasThis is neat stuff! Seeing some of your other builds, I have to ask. Are you an engineer at all? If you're not, maybe you should be. Your work is amazing! 😁
1 4 August, 13:32
Lorraine Lin AutorHaha Mike, thank you. I studied some engineering courses in university, but my job isn't in that field. Building models has totally jolted my inner engineer awake - lol
5 August, 13:36
Christoph KunzAnd now it's done, just like that. 👍
I would love to see a short video of the plane folding/unfolding the wings.
2 21 September, 12:19
Alexander GrivonevI agree with Christoph, the wing folding deserves a video 👍👍
2 21 September, 12:23

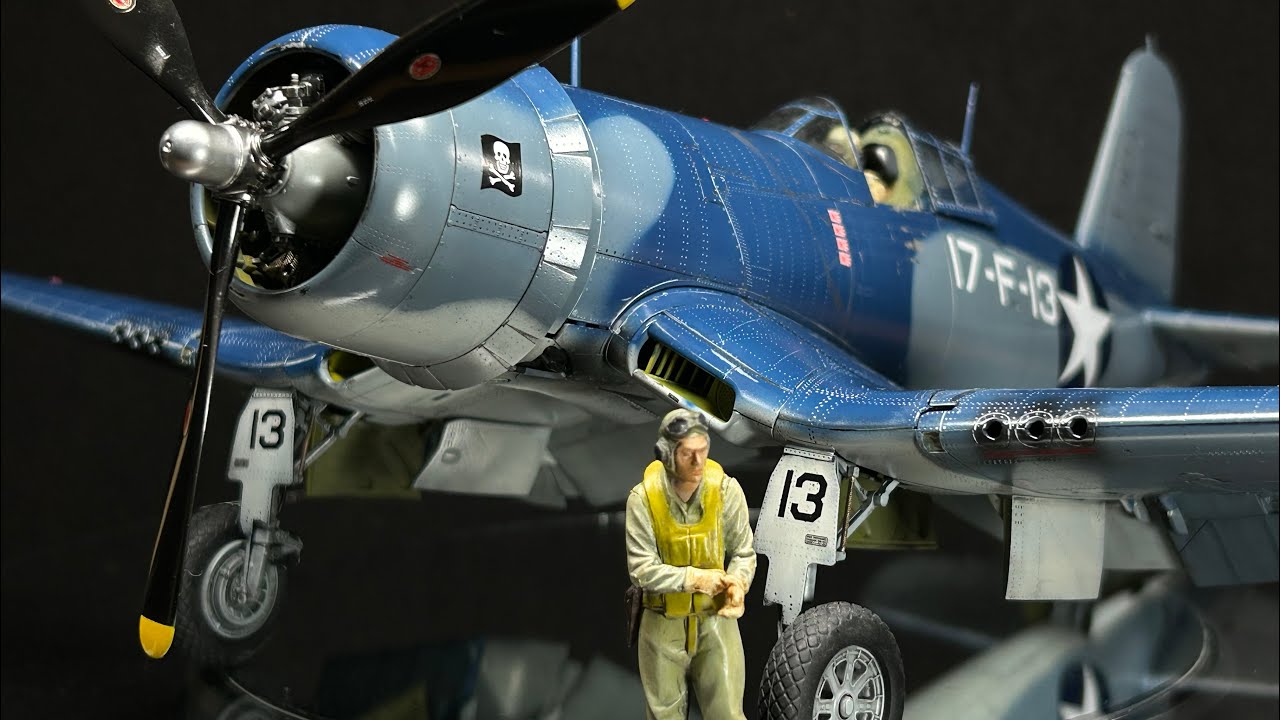

DaveLorraine, That is beautiful work and details in your Corsair. Always blown away with your creative ideas.
1 21 September, 12:42
Robert PodkońskiI cannot find the adequate words to describe your ingenuity, superhuman skills, and talent, Lorraine... Simply, you are a genius! Chapeau bas!
1 21 September, 13:15
Ben MBeautiful and inspirational. The electromechanical stuff is great and so is the modeling. Thank you for sharing on scalemates!
1 21 September, 13:41
Sven DoeWow! Fantastic work 👍
Did you use an USB-Connector underneath the engine for control?
1 22 September, 18:57
Lorraine Lin AutorThank you Mates!
@Sven Doe, Yes, I used a USB Type C cable for power and control.
1 23 September, 00:40
Michael KohlGreat idea and top engineering. Nice video. At the Hahnweide we saw the Corsairs foldvtheir wings while taxiing. Nice display there and here.
1 25 September, 10:26
Erik OffWow, impressive! How smoothly everything moves... 👍
Can you tell me where you get the parts from?
25 September, 18:57
Lorraine Lin AutorHi Erik, the stepper motor and screw assembly should be for a pop up camera of a phone. I bought it from taobao.com, similar parts also available in ebay. Key word is "5mm stepper motor linear screw slider".
26 September, 05:49
CaptGPFOK Lorraine - this isn't just next level modeling, it's light-year modeling! I thought your Back to the future diorama was amazing, but this just topped it! Well done!
1 2 December, 20:10
