Hasegawa Kawasaki Ki-48 Type-99 Light Bomber

1
October 4, 2025
The box is just a goner at this point. When I first found the box, it was crawling with live termites! giving me the goosebumps!!
2
October 4, 2025

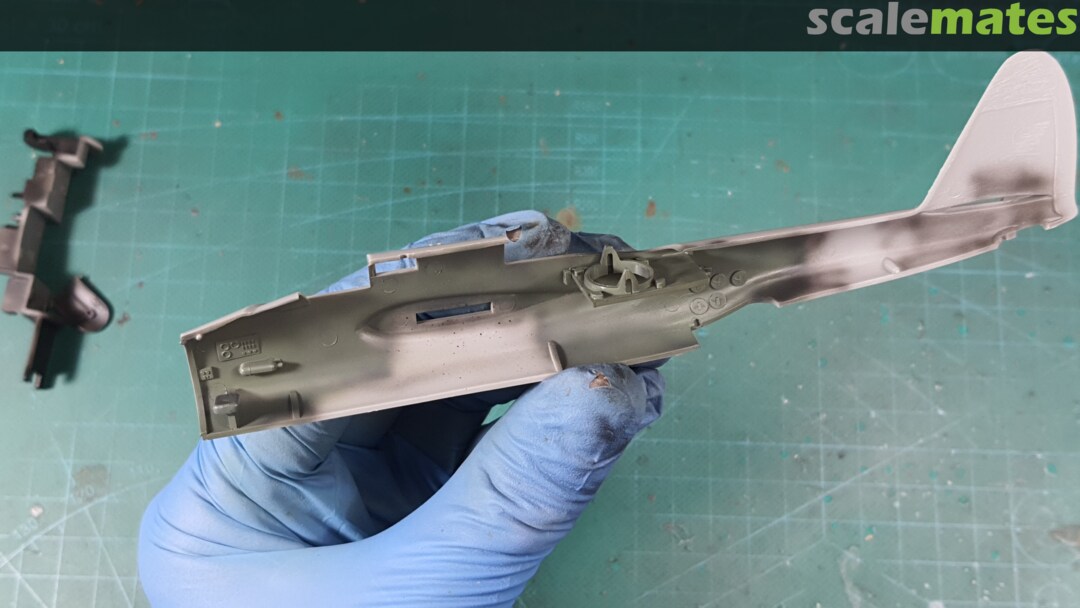

simple and basic interior that few of it can be seen when the fuselage is glued up
3
October 4, 2025

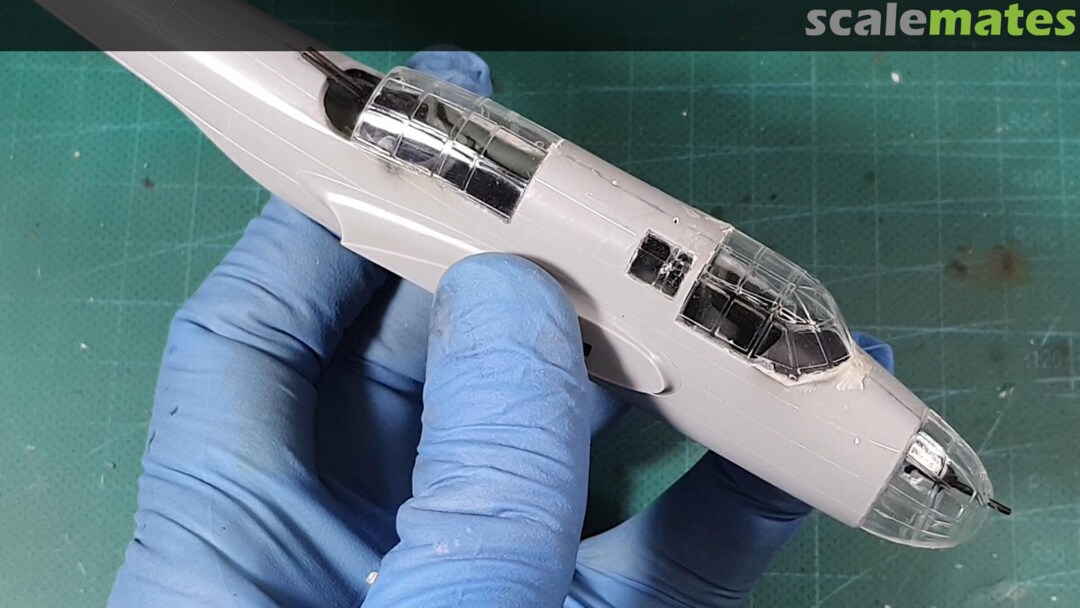

Image taken immediately after the clear plastics were installed. To my surprise, the clear plastics are very brittle and thin. I felt I need to handle them extra careful.
4
October 4, 2025
The sub assemblies fresh from being glued. The fit was suprisingly very good for an old kit
5
October 11, 2025

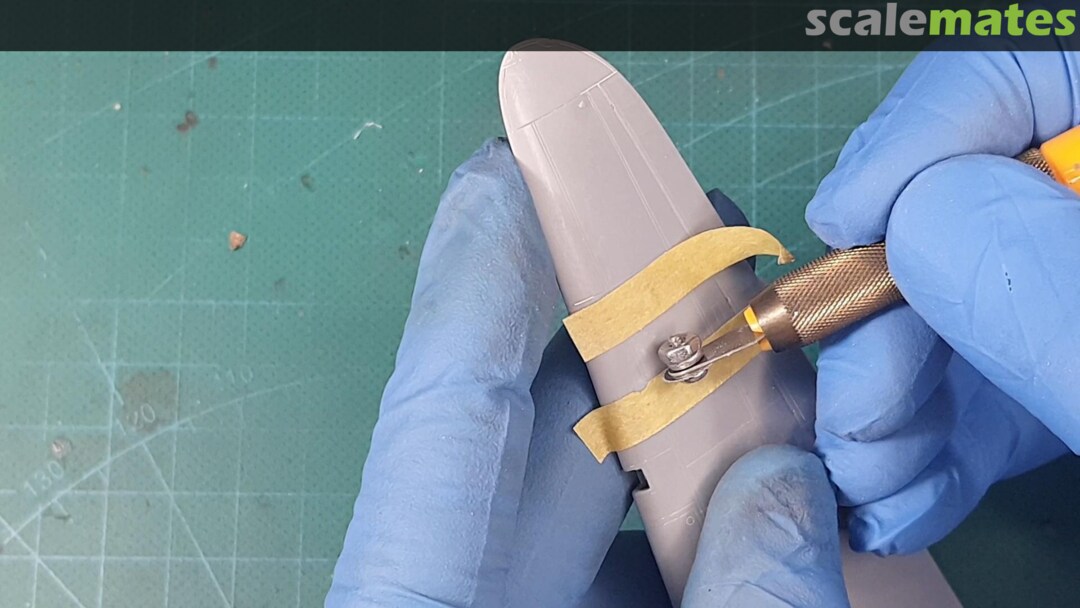

The riveting process. using RB Productions riveting wheel. The aim is to add some extra surface detail. its hard to be accurate as I cant see to get any schematic reference of this aircraft
6
October 11, 2025
that white paste on the windscreen is epoxy putty to plug a big hole under screen
7
October 11, 2025

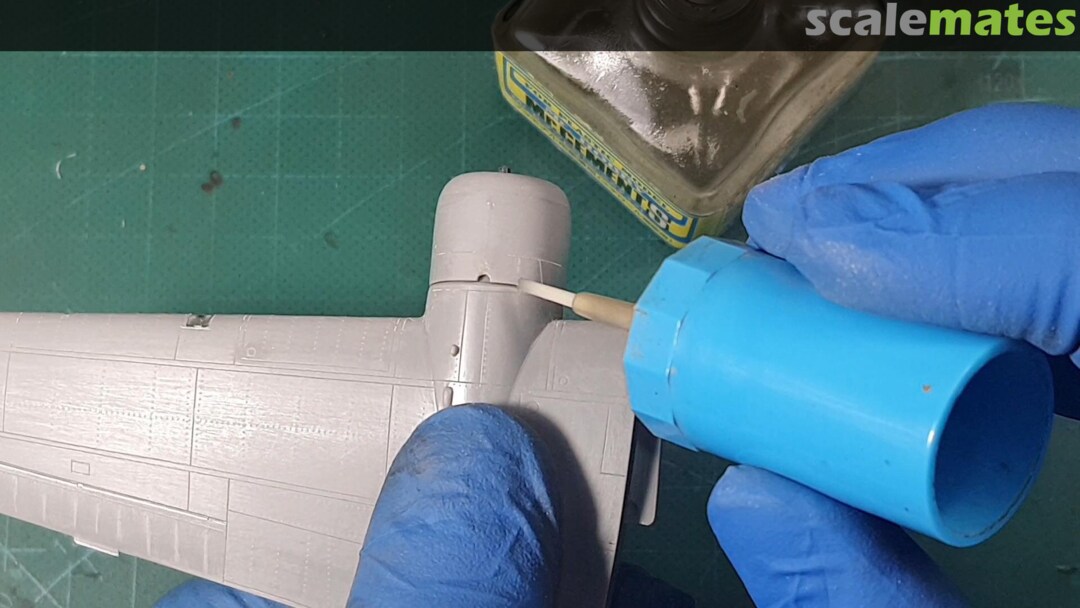

you can slightly see the results from the riveting in this image. I am gluing the engine cowling
8
October 14, 2025
This shows you the new rivets. I still have issues with keeping the lines straight and even.
9
October 14, 2025
Additional riveting near the wing root. I could onlydo this after the wings are attached. Note: you can see the rivets faintly on the wing panels.
10
October 18, 2025

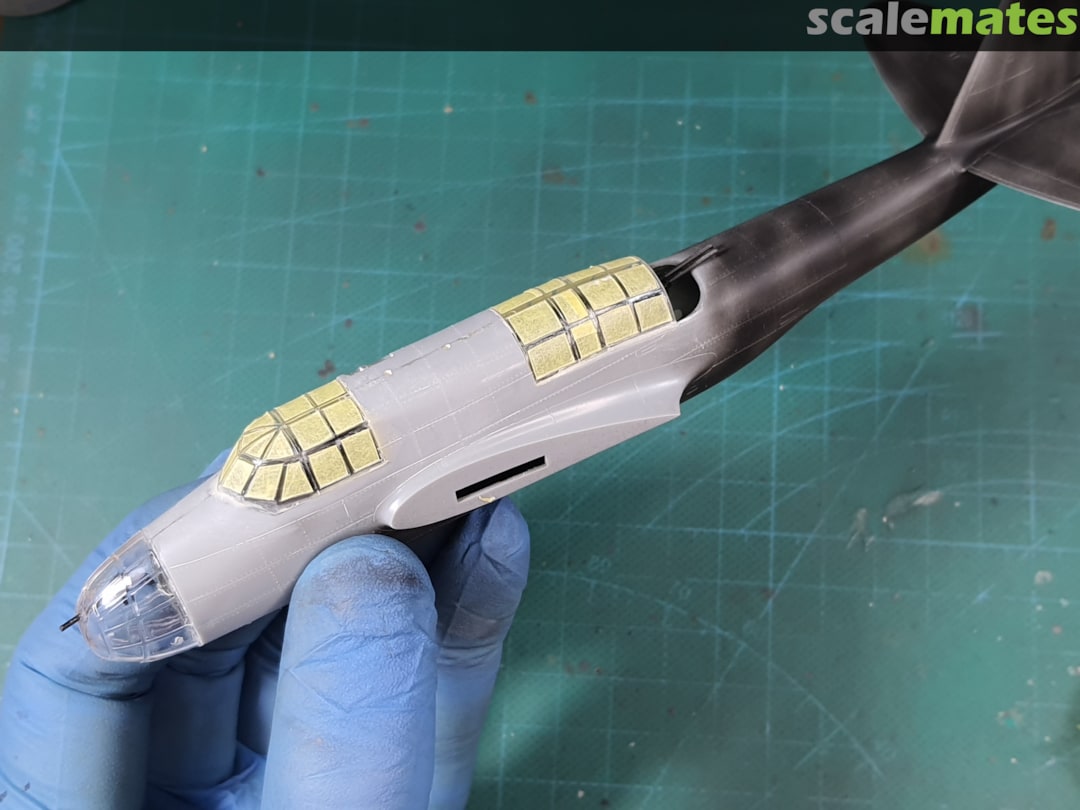

After completing the masking of the clear plastic but before I attach the wings. The masking took about an hour but it felt like forever!
11
October 18, 2025
The nose section was the most difficult part on the masking process. the photo shows after I attached the wings
12
October 20, 2025

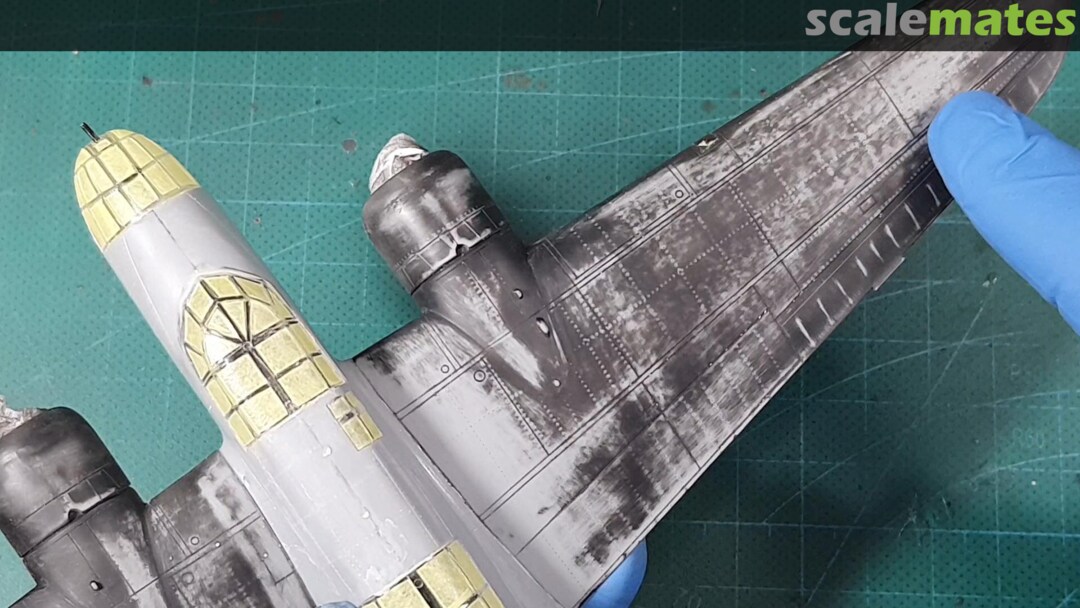

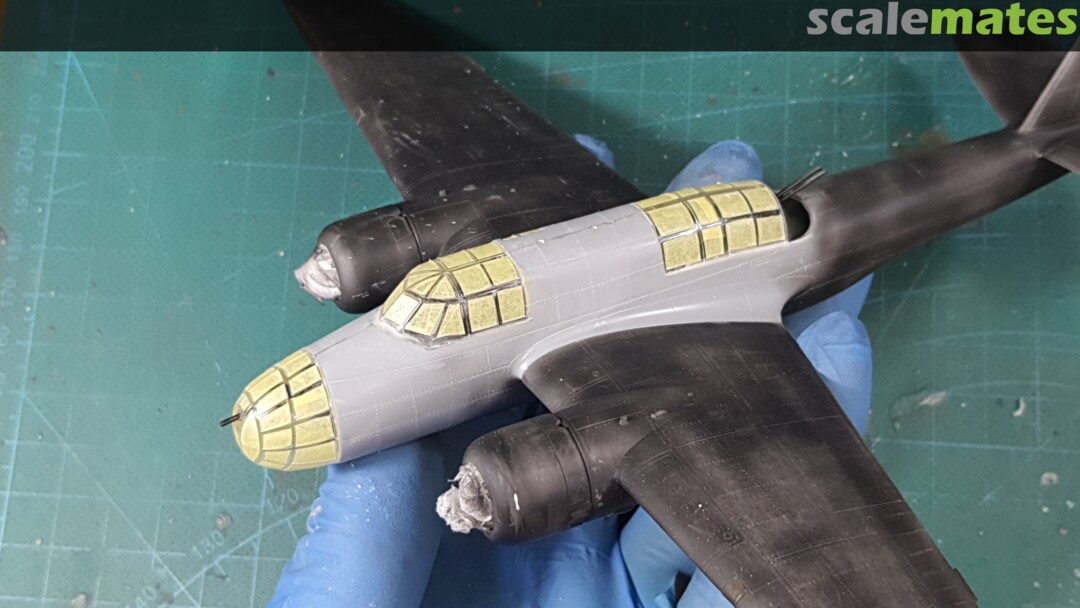

Things before the NMF was giving window frames the green interior and more black primer
13
October 20, 2025

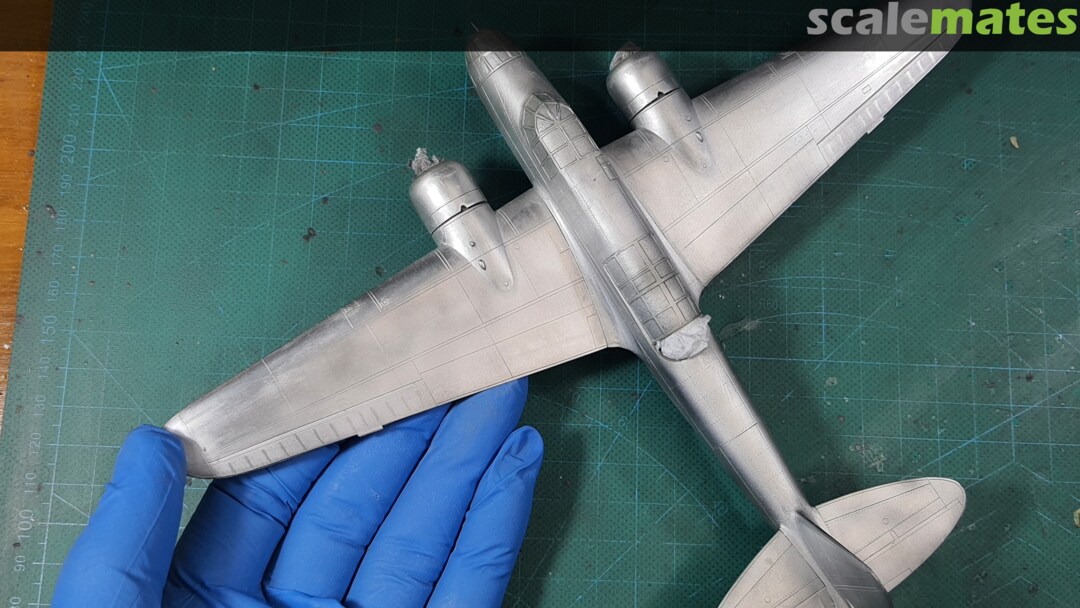

After several passes using Alclad-II Aluminum frame (ALC-4-119)
14
October 20, 2025

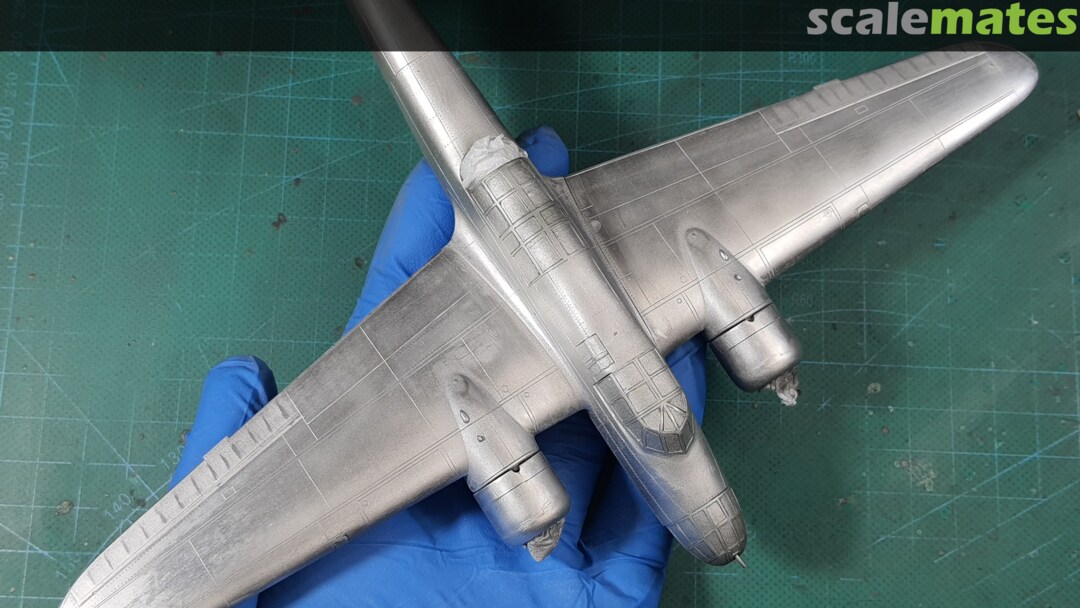

Different angle. Model is coated with Alclad-II Aluminum frame (ALC-4-119)
15
October 29, 2025
Before and after photo: Initial scrubbing of the XF-13 JA Green top layer using hairspray (HS) technique. This is the first layer of paint. There will be 2-3 more layers on top of this
16
October 29, 2025

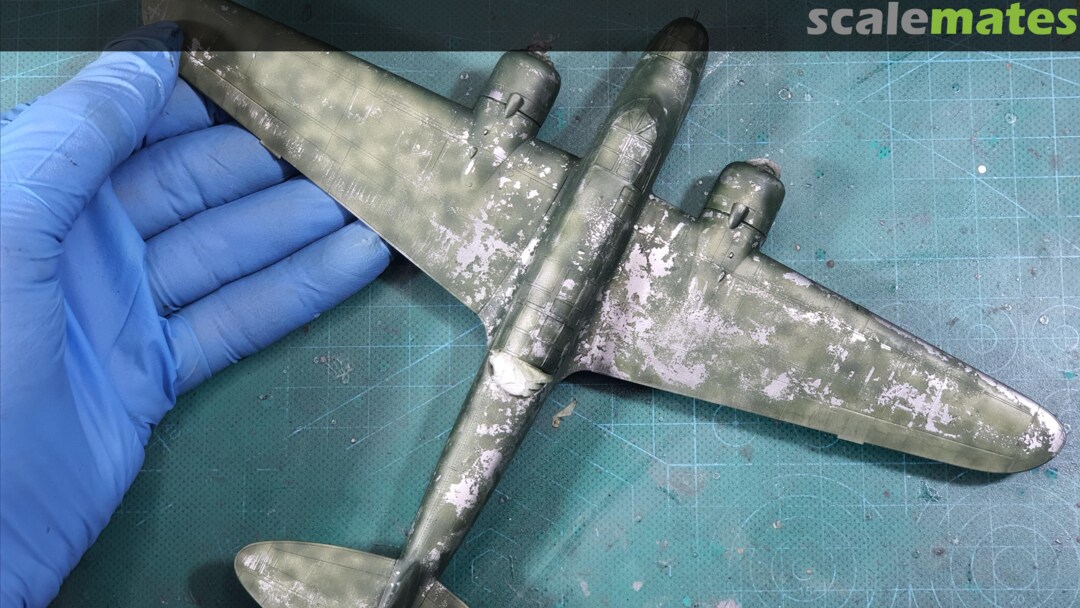

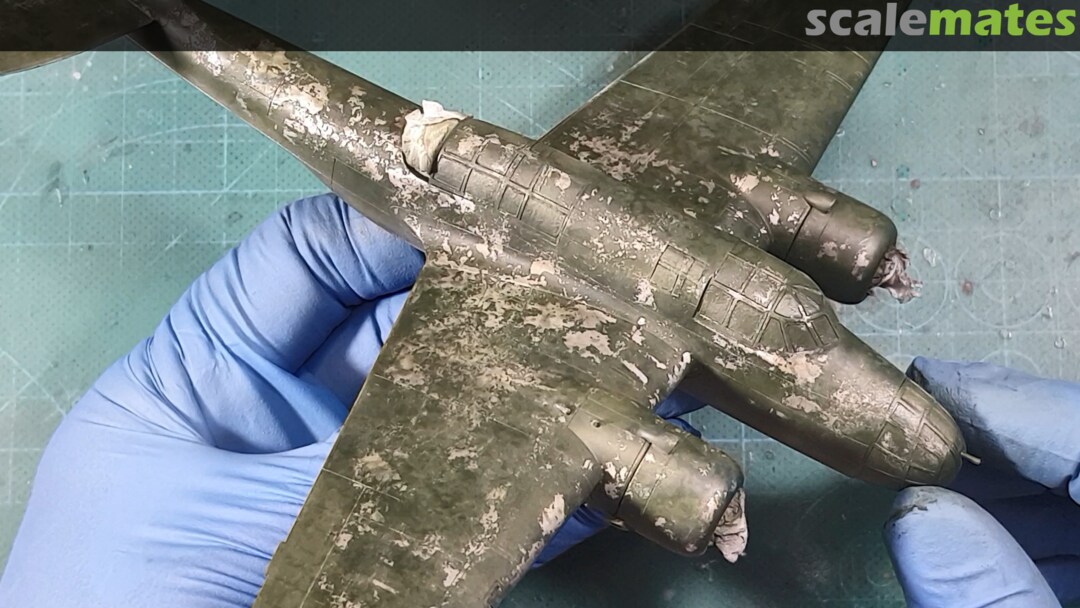

upper surface covered with chipped paint. The chipping was done using a brush, sponge, tissue paper. Hairspray is using the aerosol type
17
October 29, 2025
Lower surface, first layer of Tamiya XF-76 Gray Green (IJN). it will later get some chipping
18
October 29, 2025

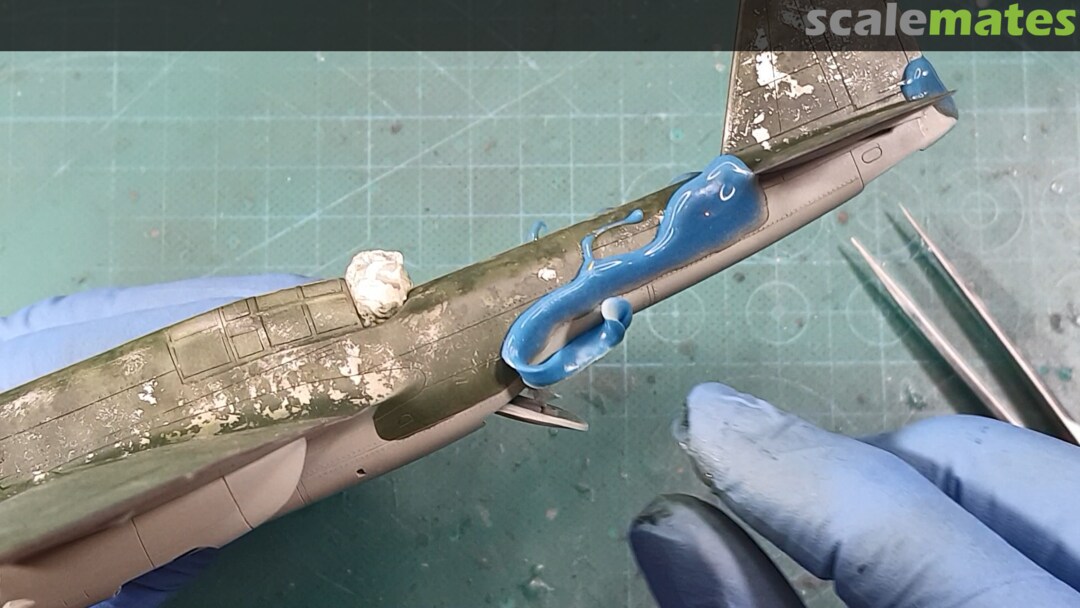

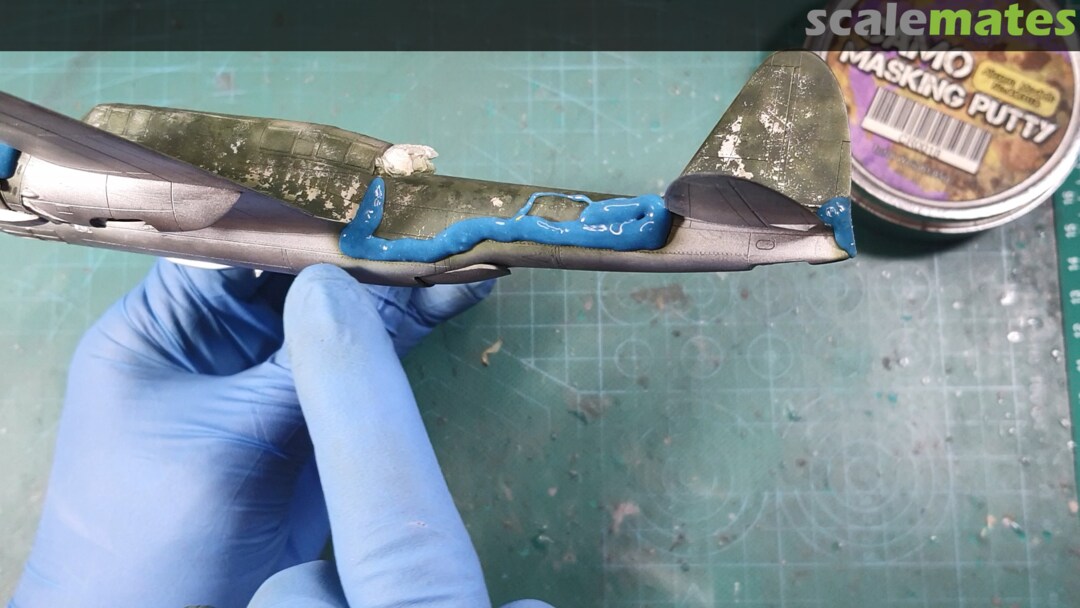

My method of masking is using masking putty. They seem to perform better than the blue-tack that I used to work with many years ago
19
October 29, 2025

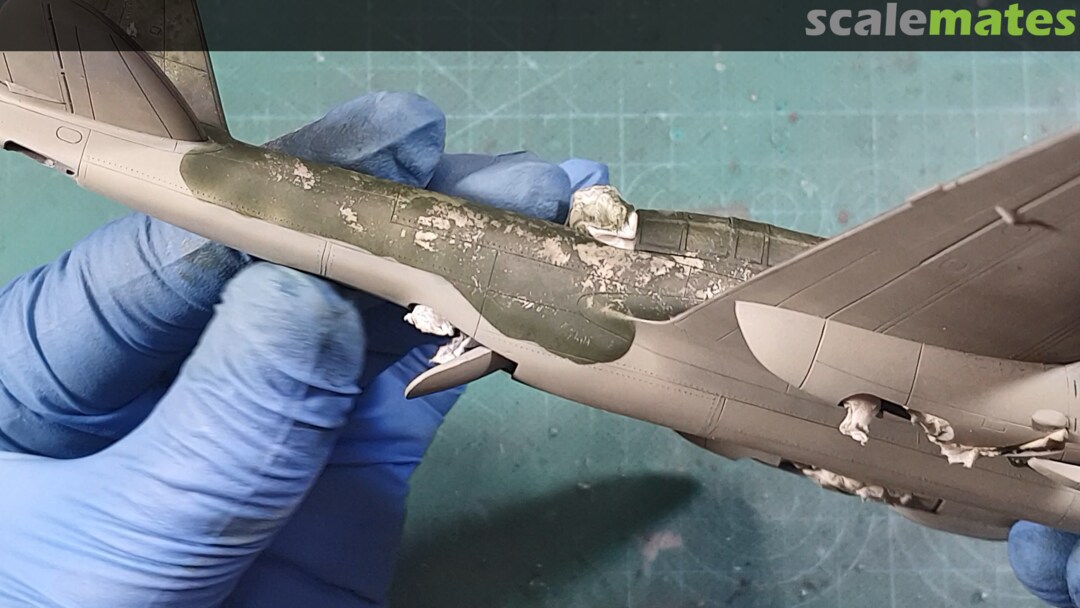

The peeling process. One of the advantages is that it leaves no residue, while I still get a nice clear lines
20
October 29, 2025
How the boundary lines look like. in this 1/72 scale, I think the "tight soft" lines still works. Noticed that I have not done any chipping to the lower surface
21
November 1, 2025

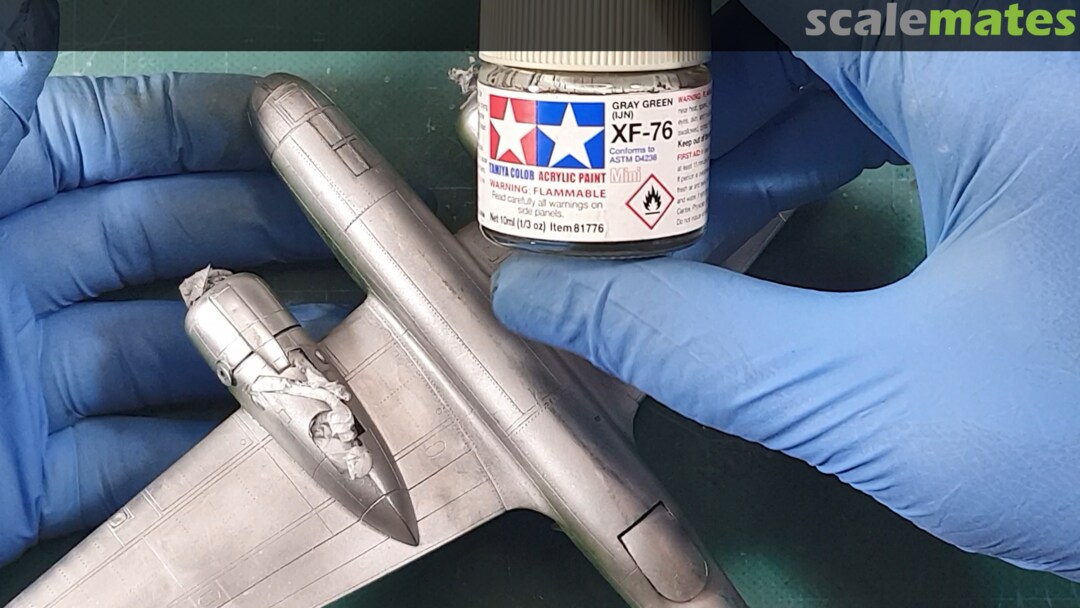

the XF-76 acrylics that I used for the chipping. hairspray works best when the paint is acrylics
22
November 1, 2025

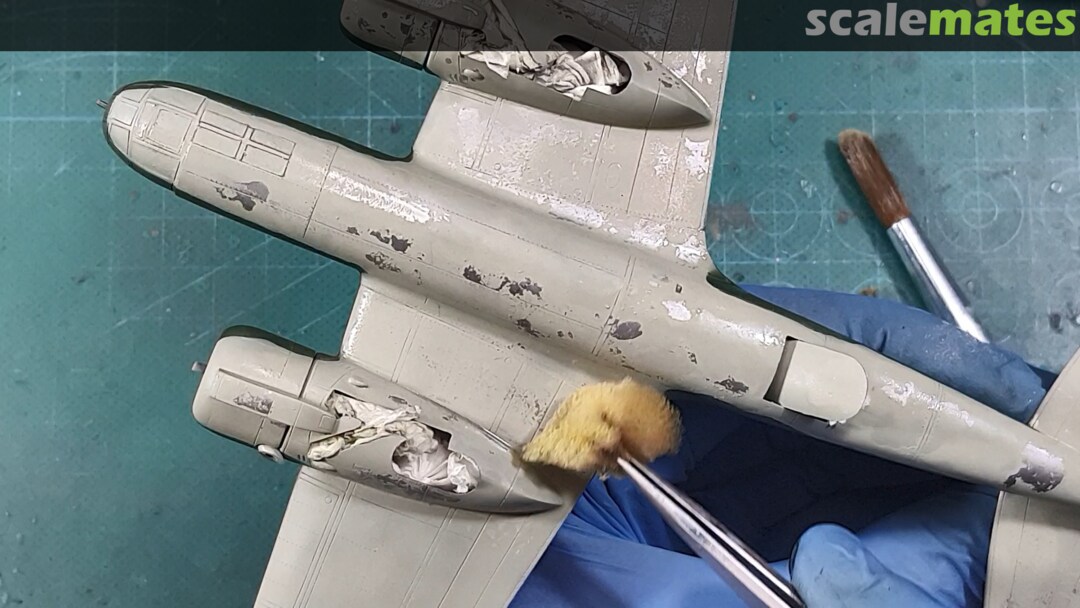

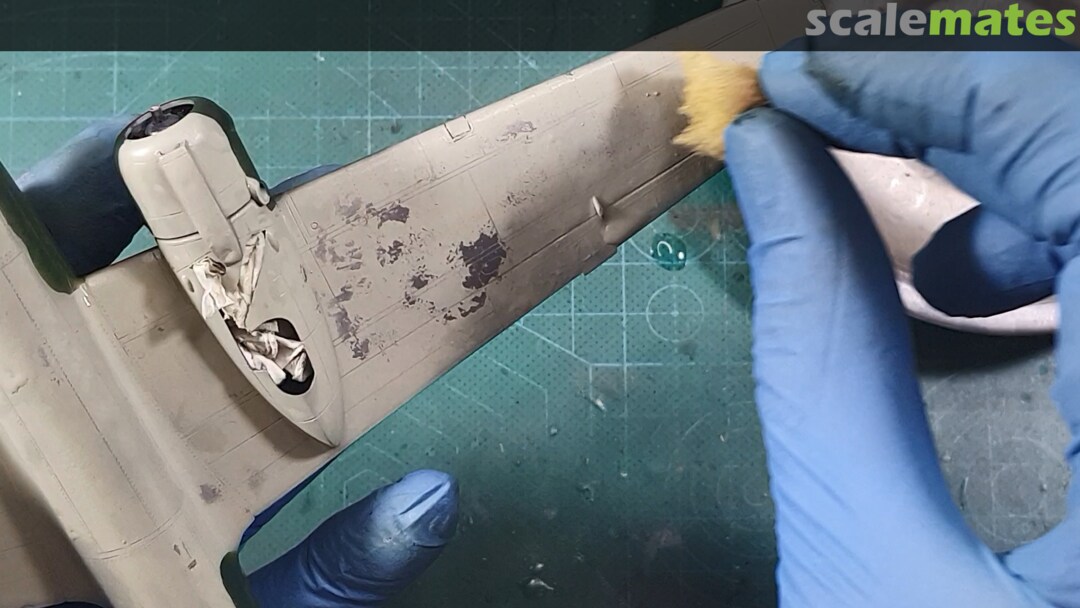

Using a sponge one of the method I used for the chipping process
23
November 1, 2025
I also use different size brushes, flat and fine tipped, including pointed objects like toothpicks
24
November 1, 2025
These are the bottles I used to layering-up the upper surface area. The basic surface with chipping is too raw. I intend to give it another 2-3 layers of other analogous colors with different level of subtlety
25
November 1, 2025
These are the templates that I used to help me layer the other analogous colors. These are from Uschi van de Rosten. I complimented with with another set from Iwata Artool Texture FX.
26
November 1, 2025
Here, I am using the smallest of the template set. I had these sets for many years now, and they are one of my most indispensable assets
27
November 1, 2025

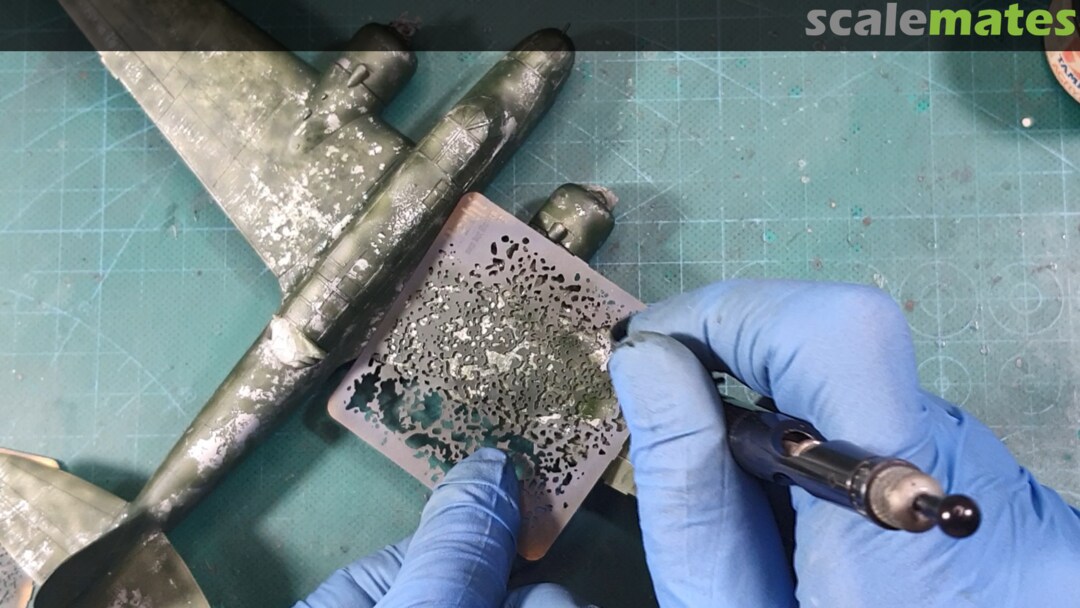

Using the middle-size template. the key is to turn, twist, move, relocate (and never stay still) while the airbrush keeps spraying. the action will create a unique layering effect which add richness to the surface detail.
28
November 2, 2025

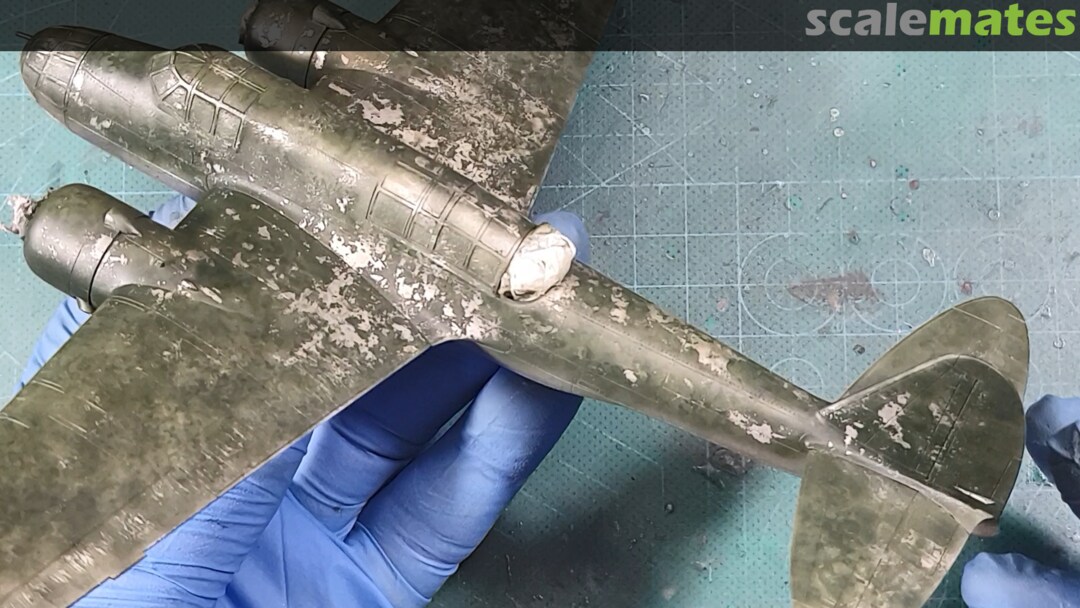

A top down view of the upper surface after getting extra layering using the airbrush template. You can see the level of complexity of the paint and bare metal has increased. It is no longer just one monotonous color, buat a combination of others.
29
November 2, 2025
same as the description before, but a close up of the port side.
30
November 2, 2025
Same description as before, showing a close up of the starboard side
31
November 2, 2025

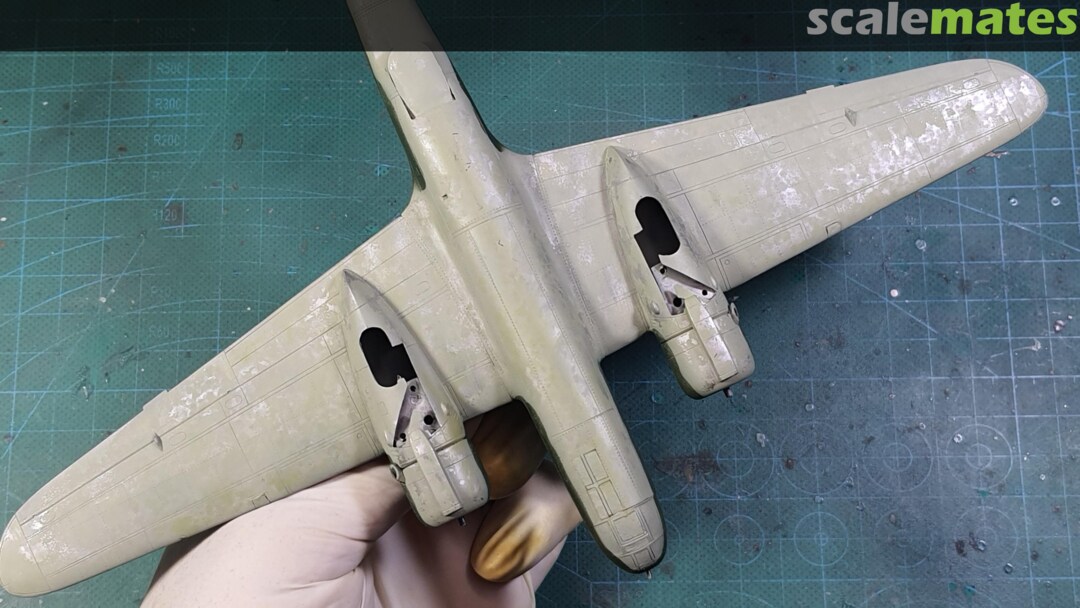

The lower side with chipping and layering using airbrush templates.
32
November 2, 2025
The underside with chipping and multiple layering using the airbrush templates

Comments

44 4 October, 17:07

Transall NG
You are right, very good kit, and nice aircraft ! But what a box !!!
Goog luck !
@+

1 4 October, 18:57

Danumurthi Mahendra Author
Thanks, box got a bad beating LOL!

5 October, 02:47

Cuajete
A kit reborn from the ashes of its own box. Following!

1 5 October, 18:16

Danumurthi Mahendra Author
Love it, reborn from the ashes!

1 7 October, 03:46

Dave Flitton
Watching!

1 12 October, 04:15

Łukasz Gliński
That looks interesting (and I don't mean the packaging 😄)

1 14 October, 12:55

Danumurthi Mahendra Author
Thanks @Dave and @Lukasz. Progressing with the NMF now

20 October, 08:51

Cuajete
NMF looks great. Good job with the masks 👍

1 20 October, 18:31

Lost_Erik
That is coming along well. A great save from the termites!

1 21 October, 01:40

Alec K
Taking a seat 👍

1 21 October, 13:33

Danumurthi Mahendra Author
Thanks, mates! I just added a short video to summarize the riveting and natural metal finish. Link in the album info

1 26 October, 16:10

Michael Kohl
Following

1 26 October, 16:14

Finn
Me too

29 October, 17:12

Danumurthi Mahendra Author
thanks, @Michael and @Finn!

29 October, 17:18

Alec K
Chipping looks superb 👍

1 29 October, 17:33

Cuajete
I agree with Alec. Great effect! 👍

1 29 October, 19:03

Lost_Erik
Sweet results with that chipping.

1 30 October, 02:44

Bozo
Such a beautiful camo

1 31 October, 21:22

Desert Marlin
Excellent chipping!!! Not sure I could pull that off!!! Cheers!!!

1 31 October, 23:44

Danumurthi Mahendra Author
Thanks, guys. I will update more progress images soon

1 1 November, 03:28

Tim Builder
The tonal quality achieved with the green paintwork is outstanding. Well done!

1 1 November, 06:04

Michael Kohl
Nice progress

1 1 November, 08:27

Danumurthi Mahendra Author
Thank you @Tim and @Michael . I just added three images show the results of layering extra paint using the airbrush templates.

1 2 November, 02:22

Yury
Heavy Japan-style chipping. Love it!

2 November, 06:32

Tim Builder
The tonal quality of the paintwork is outstanding, especially so when you take in the chipping as well. I'm going to have to give this technique a go. Great work 👍

2 November, 07:25

Cuajete
I agree with mates. Great effect! 👍

2 November, 21:07

Album info

My attempt at finishing this forgotten kit that i have in my stash. Sadly, termites have gotten to it first - devulging the box almost into pulp. Lucky for me, the content is still in good shape including the decal sheet. Progress has so far been smooth. It is an old kit but with great potential. I made this short video to show the early progress of the build. Youtube Video

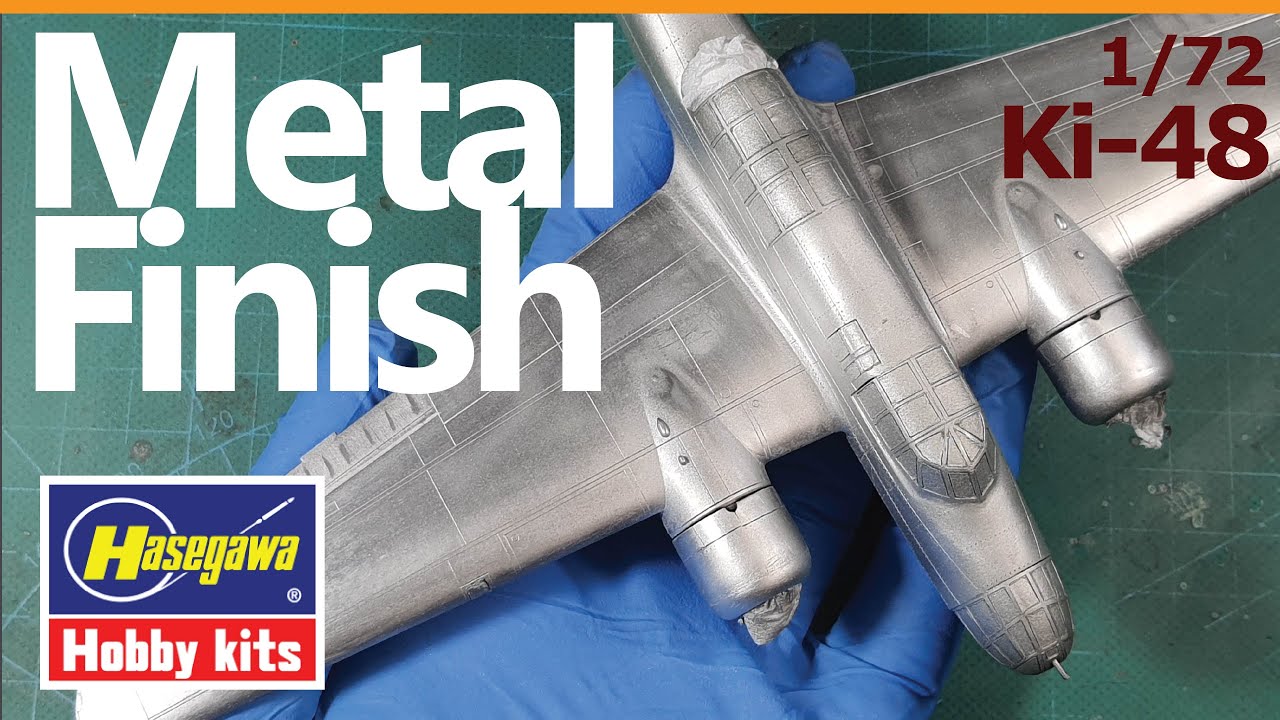

On the riveting and metallic finish, i made this short video to explain things Youtube Video

Hasegawa Kawasaki Ki-48 Type-99 Light Bomber

32 images

1:72

In progress
