Matchbox A-7D Corsair II

1
December 25, 2024
Just the start. It will be an OOB build, including decals if they hold. Typical Matchbox 3-colour sprues 😄
2
January 19, 2025

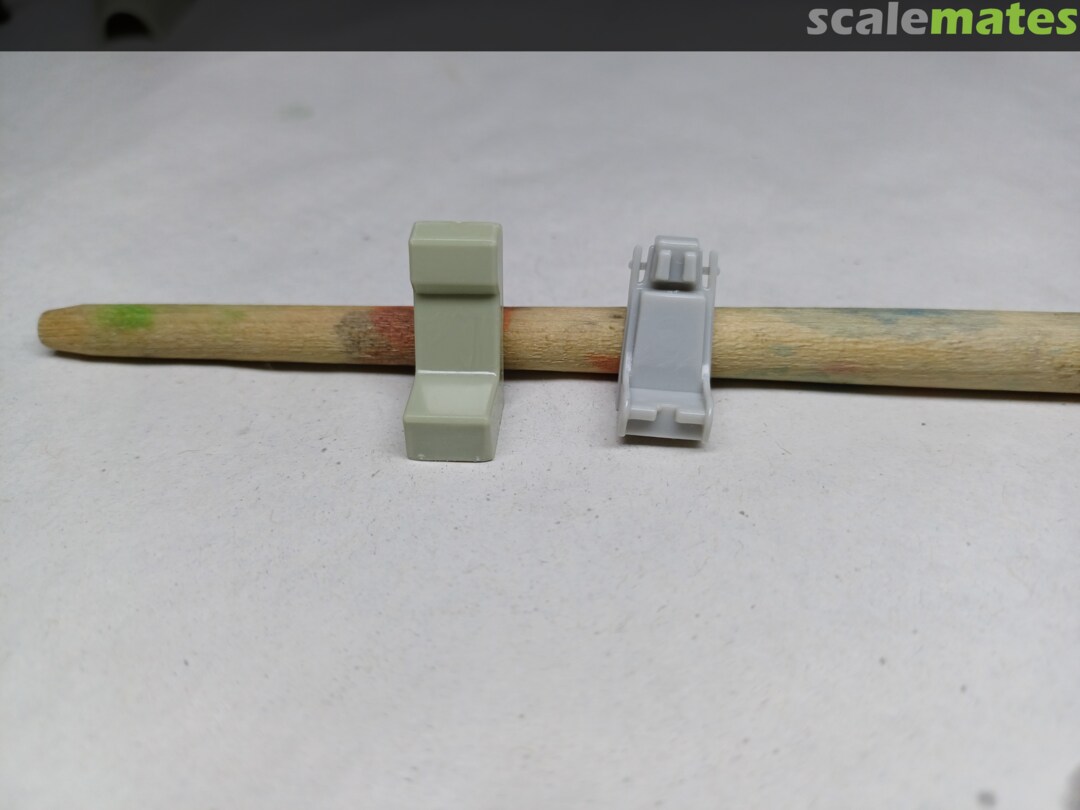

The Matchbox ejection seat (on the left) is really bad, so I will replace it with a spare one
3
January 19, 2025

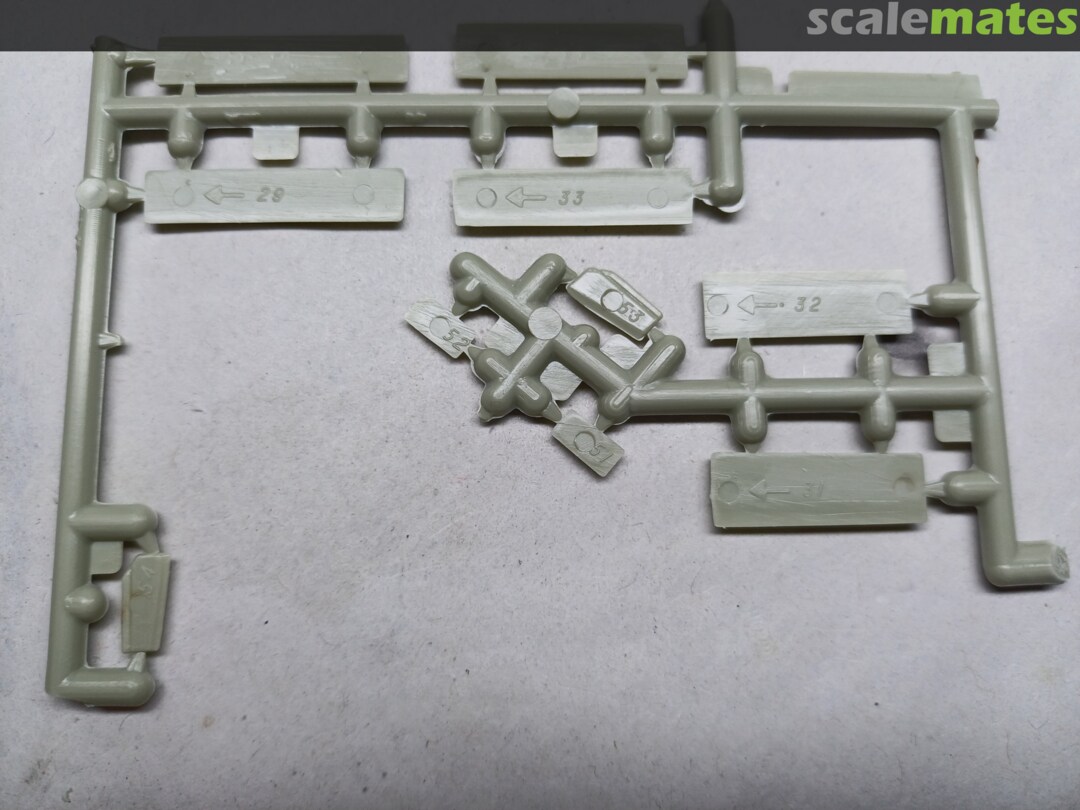

The arrows and numbers on the landing bay doors will have to be removed
4
January 19, 2025
White primer applied to some parts...
5
January 19, 2025

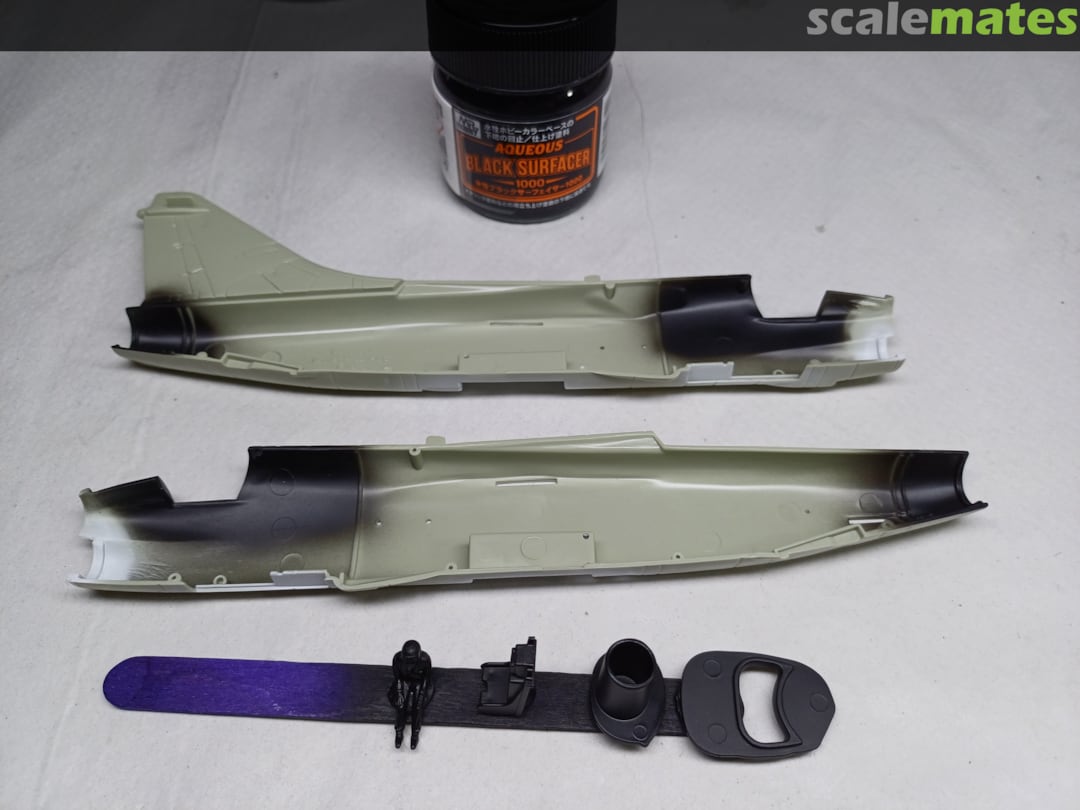

... and black primer to others
6
January 19, 2025
I decided to include the pilot for old times sake. The Matchbox pilots were usually quite good
7

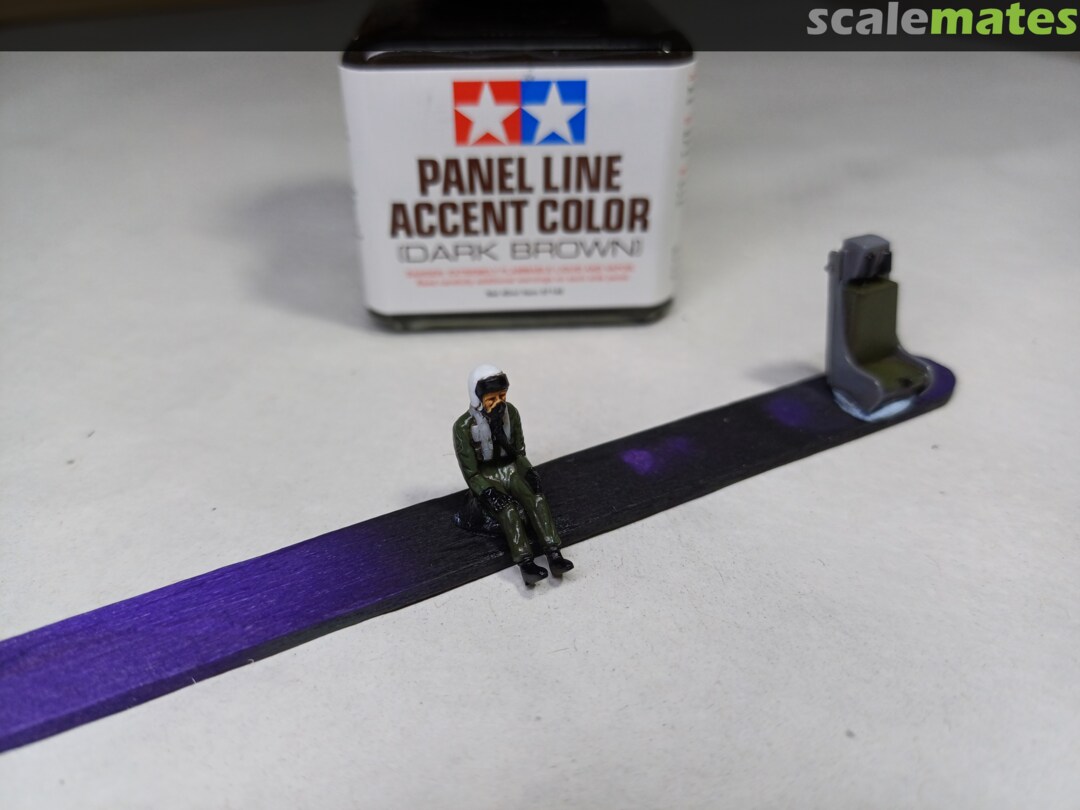

January 19, 2025

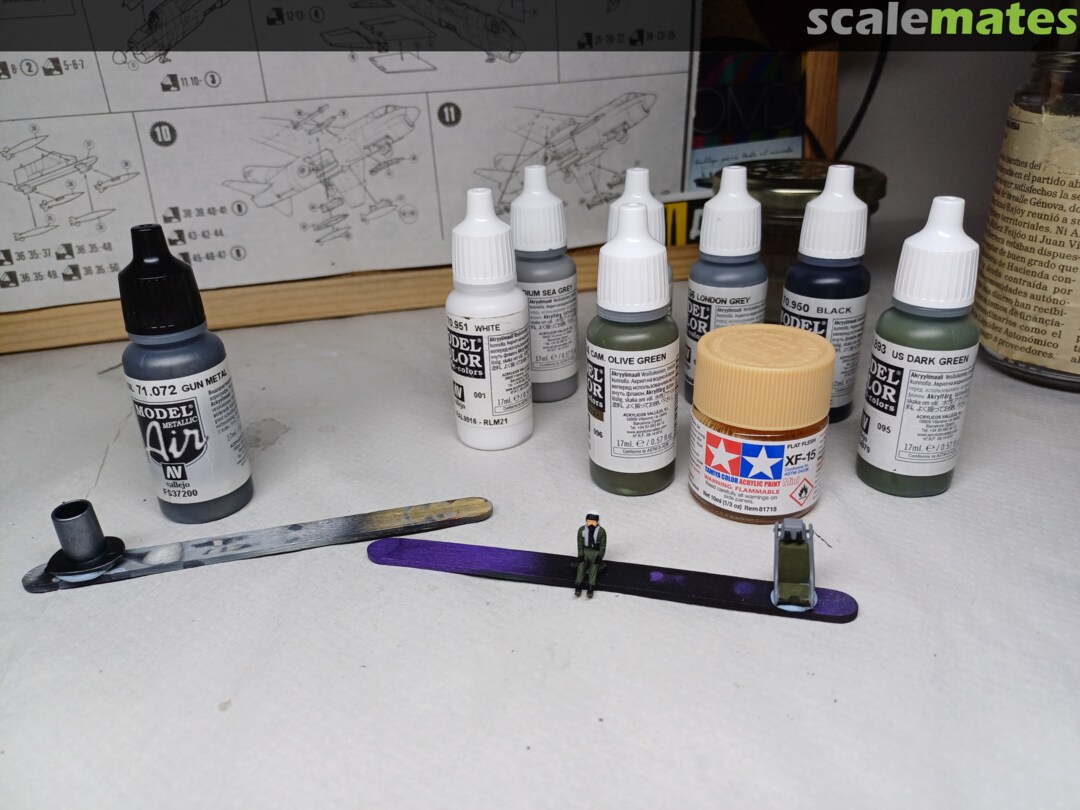

Dark brown wash applied
8
January 19, 2025
And matt varnish to protect the painted parts
9
January 19, 2025

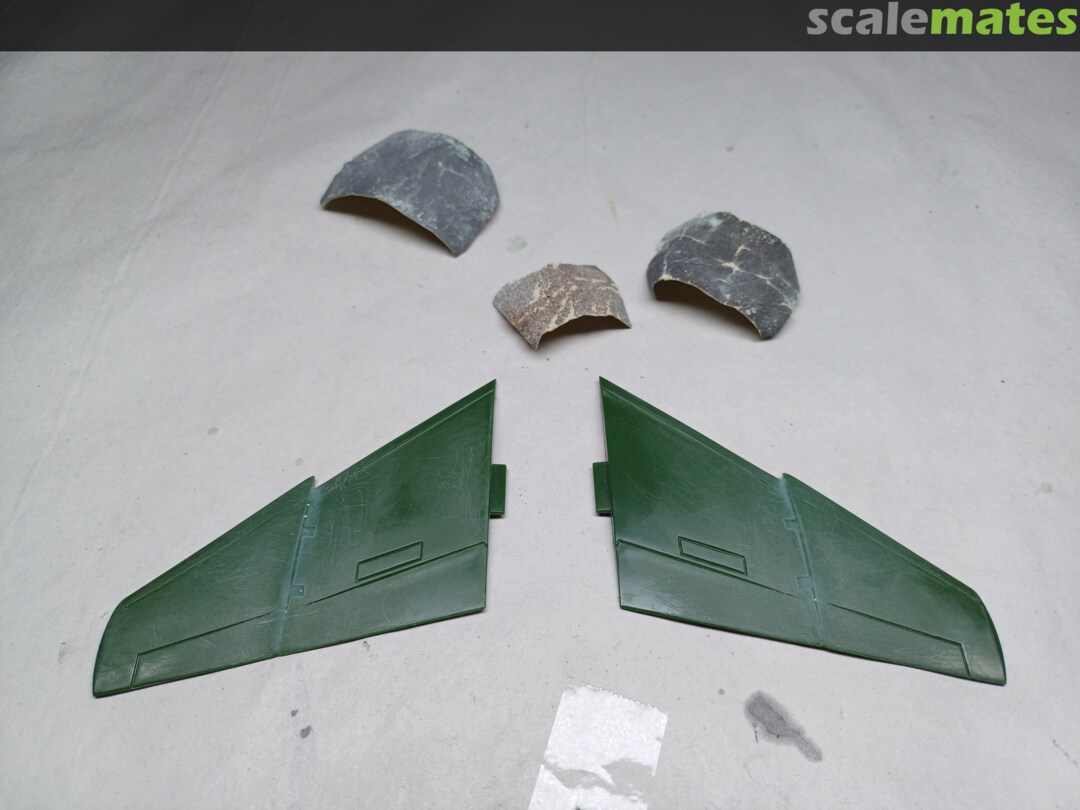

The joint on the folding wings is atrocious 🙁
10
January 19, 2025

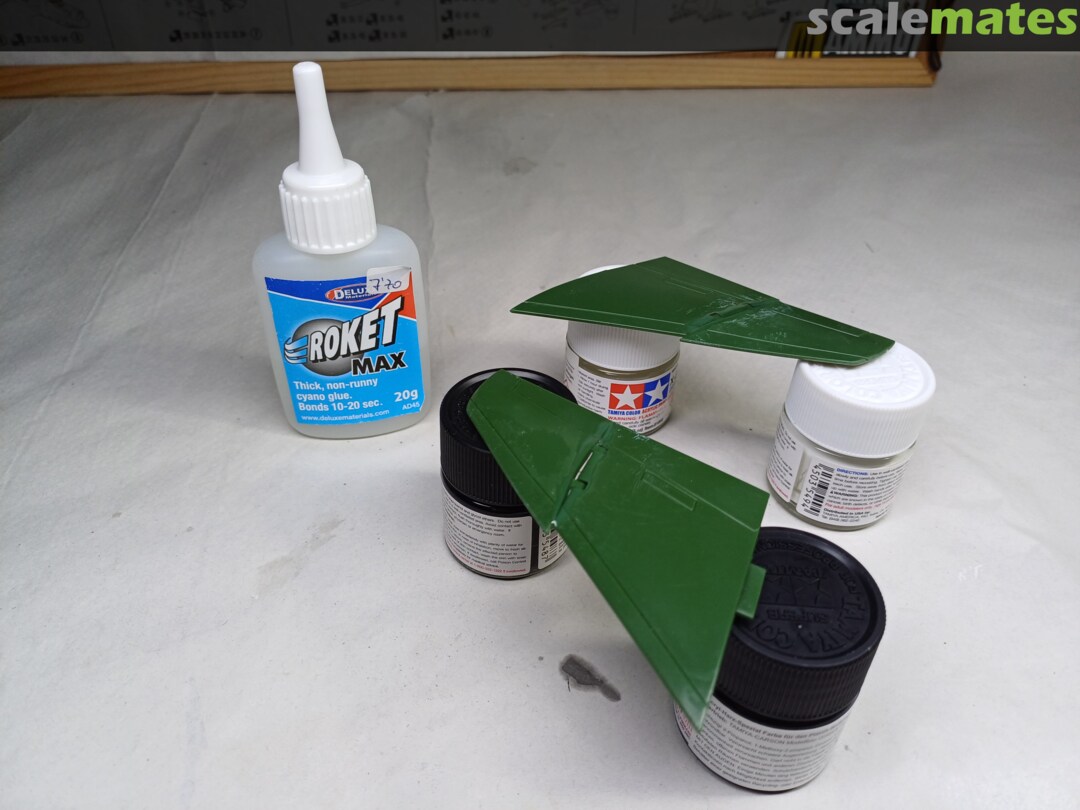

Joints filled with super glue
11
January 19, 2025
And sanded down. You can still see the joints because the glue is clear, but they should be smooth when primed and painted (I hope 😄)
12
February 22, 2025

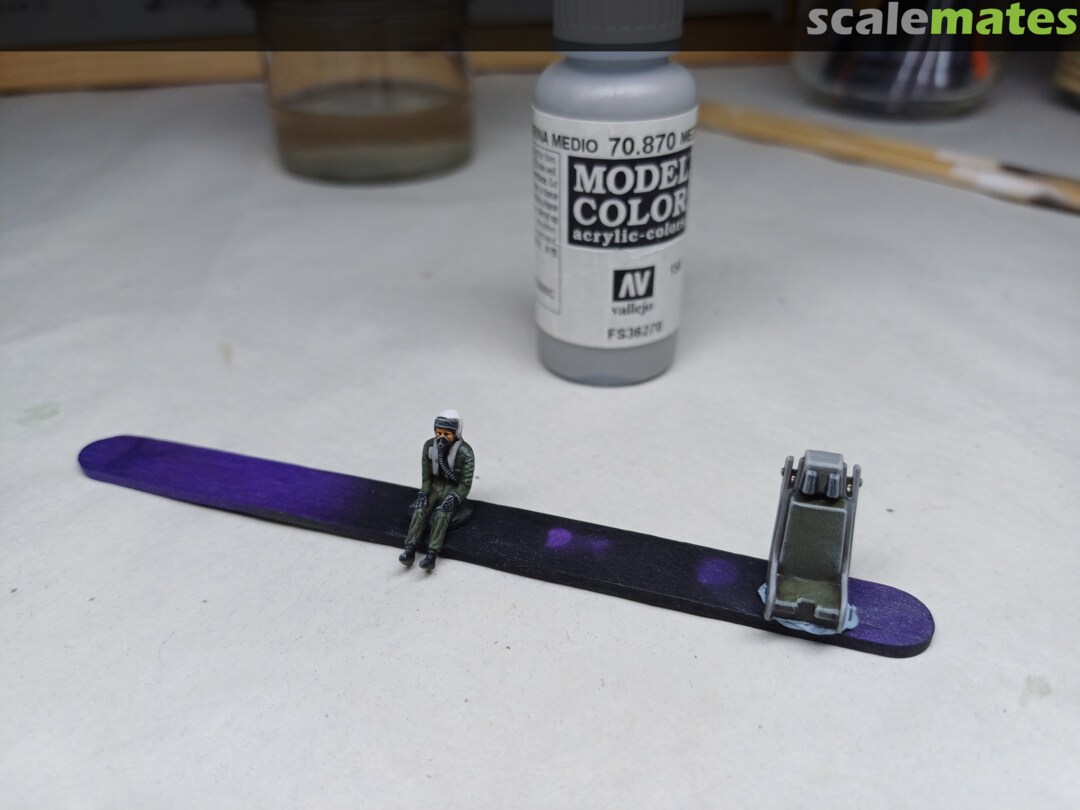

A bit of dry brushing on the pilot and his seat
13
February 22, 2025

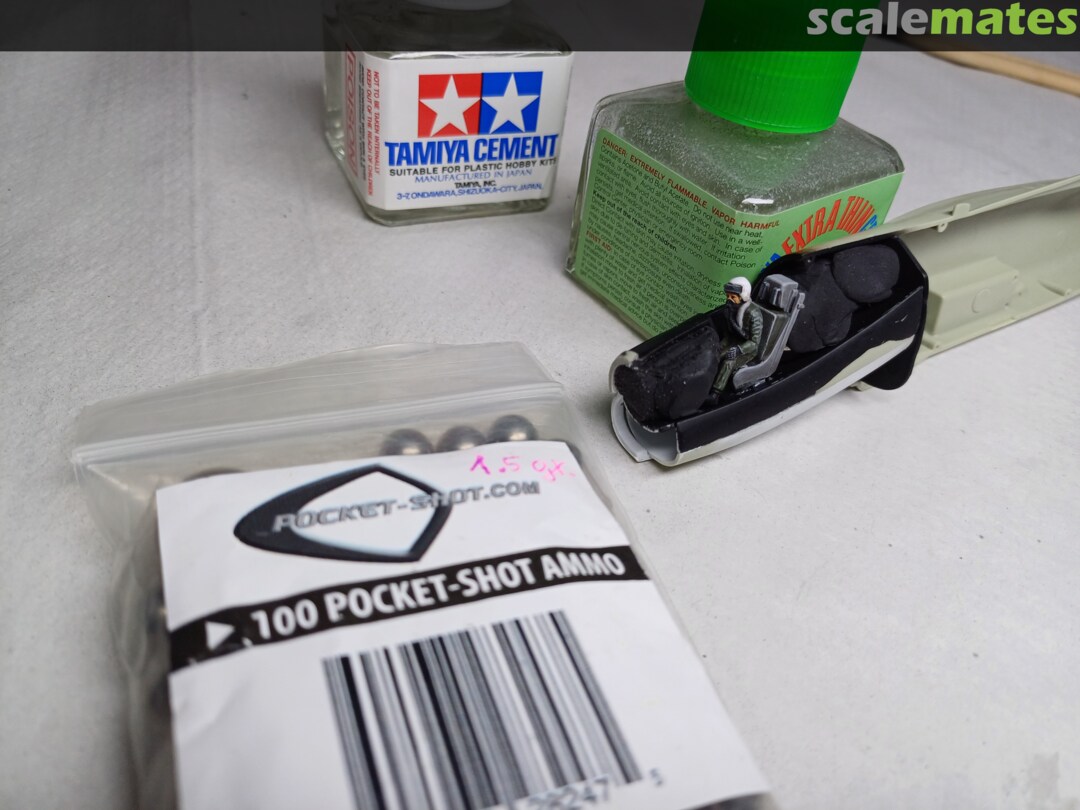

Ballast addition. Kept in place with black play-doh
14
February 22, 2025
Dry fitting, just checking there is enough nose weight
15
February 22, 2025
Closing the fuselage
16
February 22, 2025

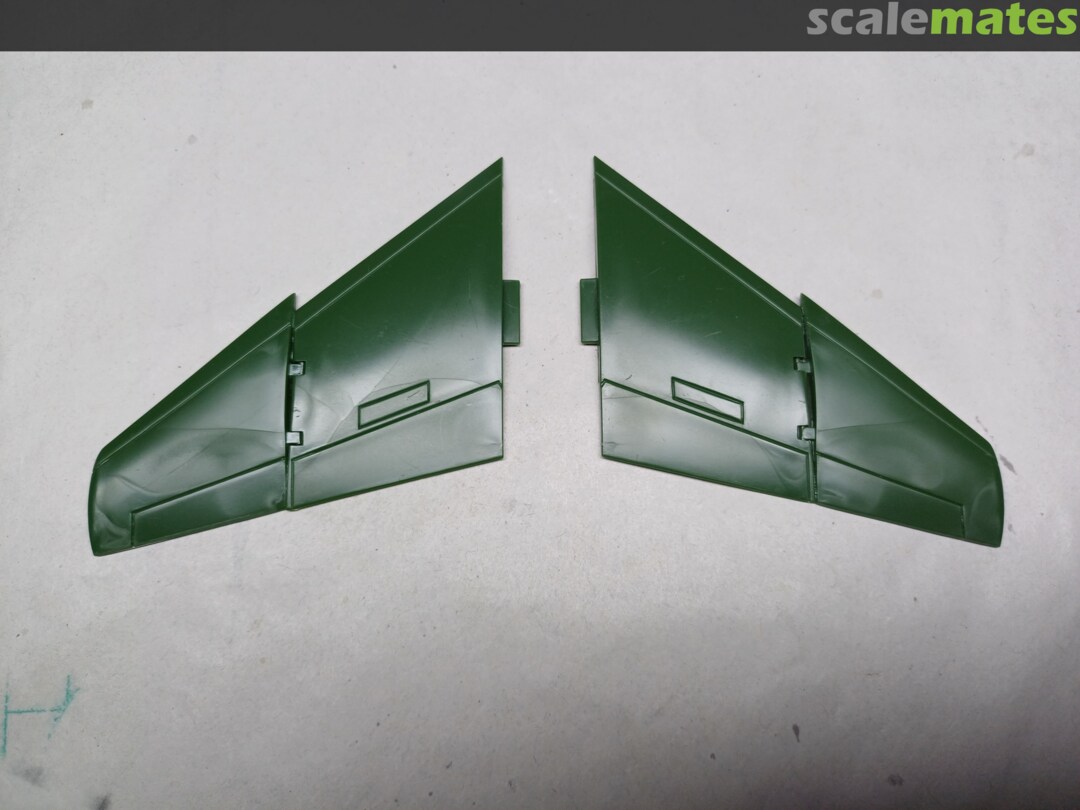

And there are quite a few gaps to fill
17
February 22, 2025
More gaps
18
February 22, 2025

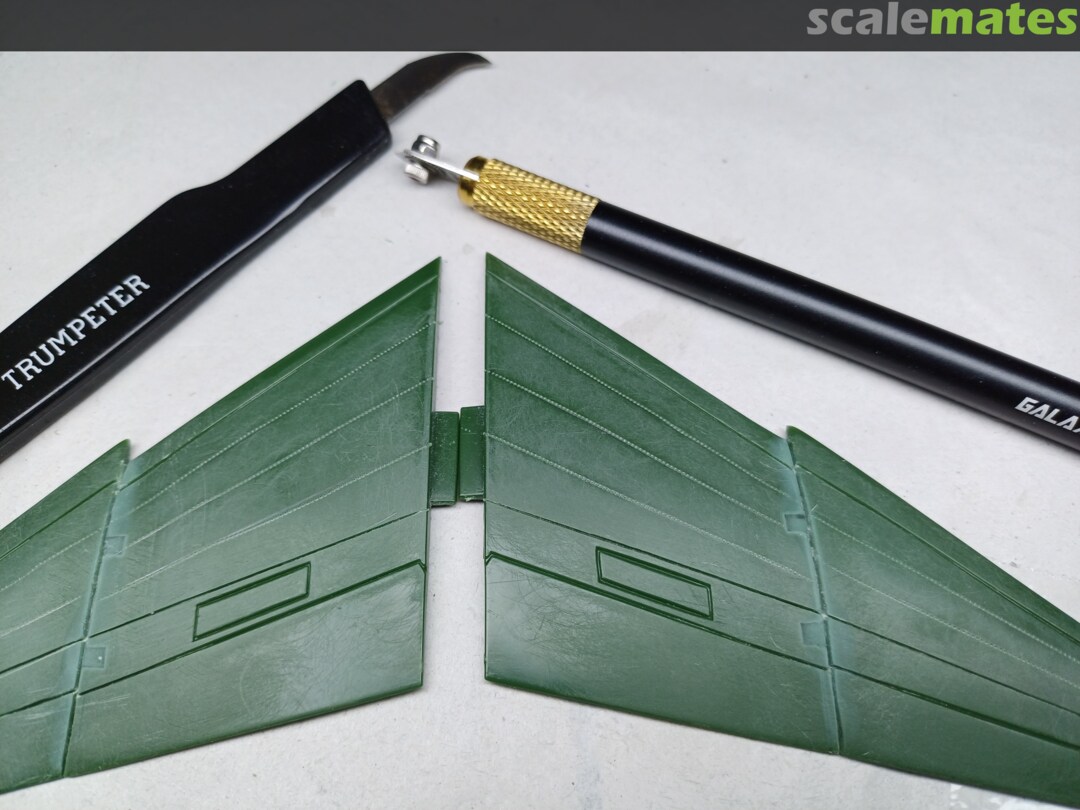

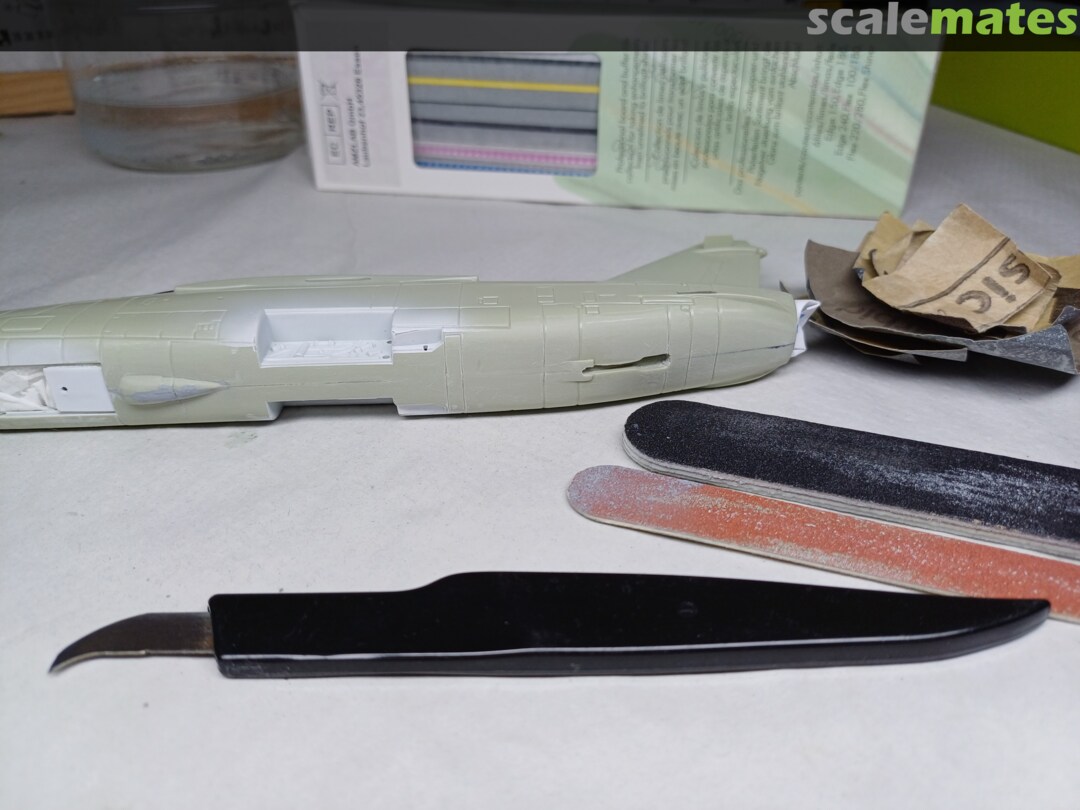

Sanding and rescribing
19
February 22, 2025
Adding some rivets
20

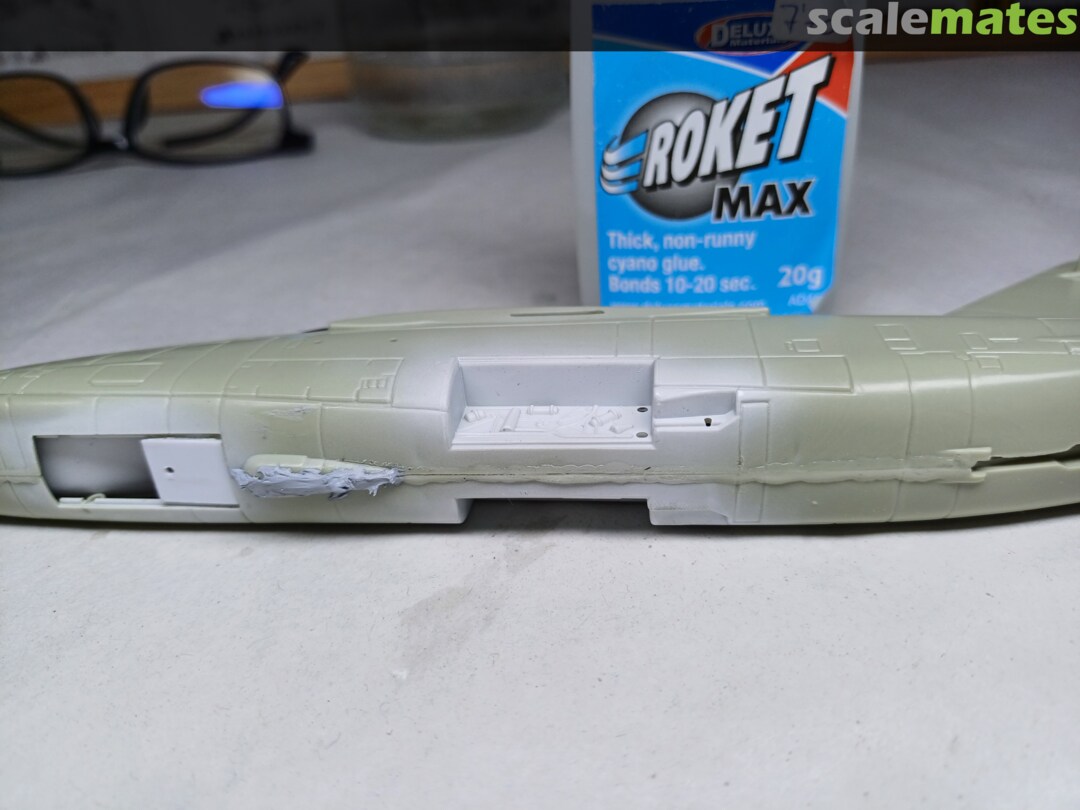

February 22, 2025

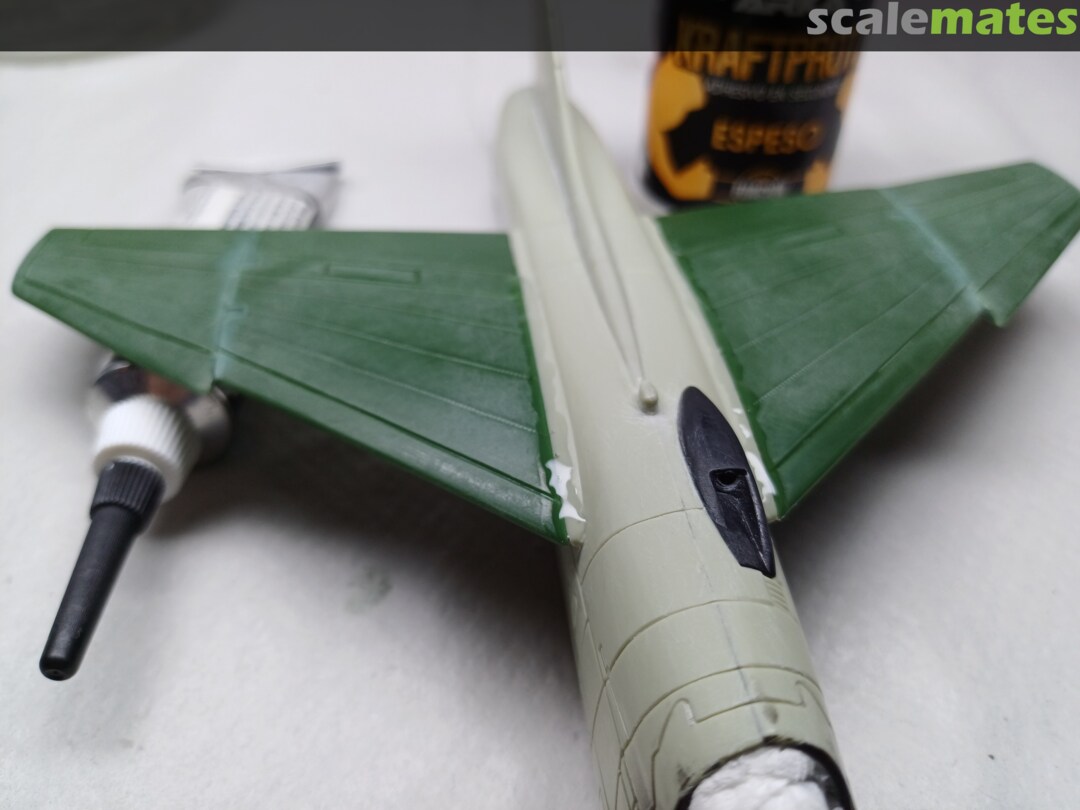

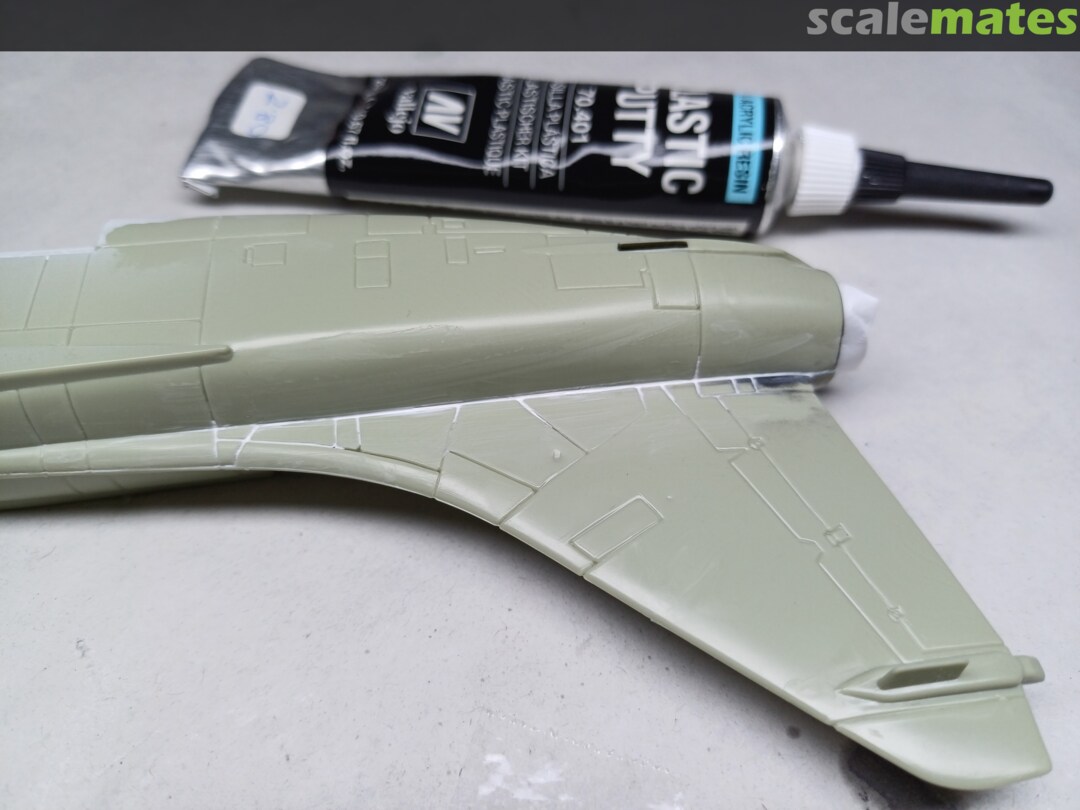

Gaps to fill also after gluing the wings
21
February 22, 2025
Filled with cyano glue and sanded. A few rivets re-done too
22
April 12, 2025
Control panel is printed on a label (small cheat, not noticeable)
23

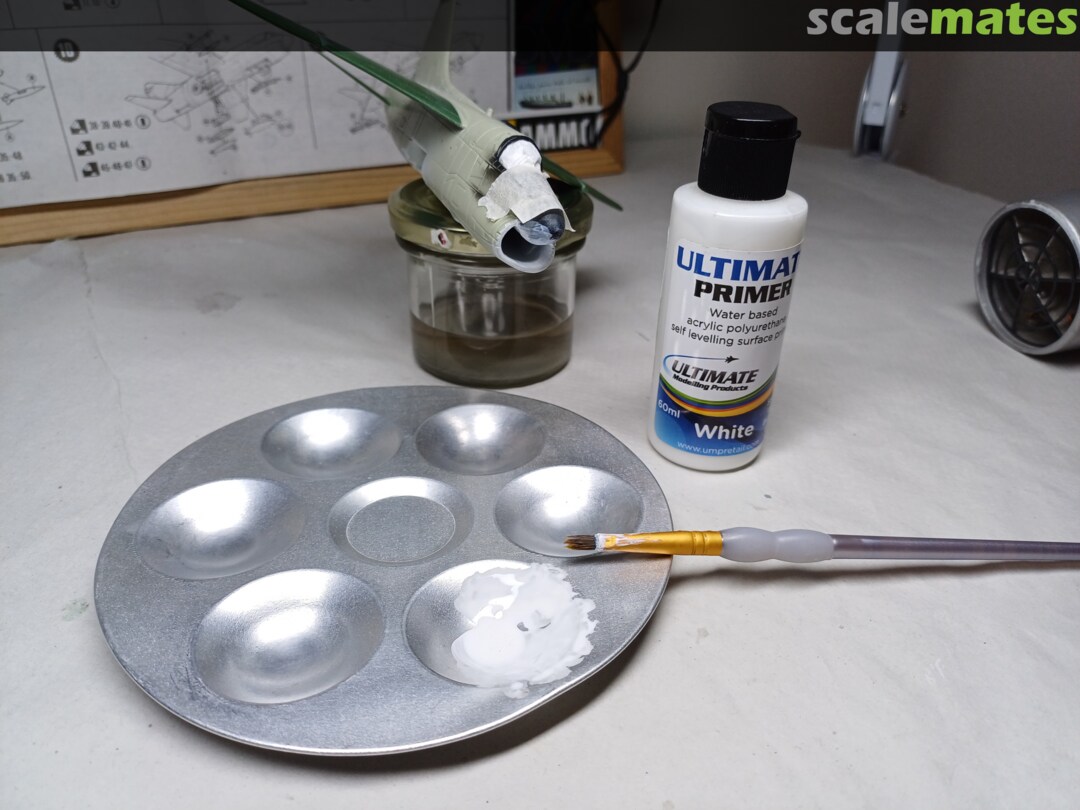

April 12, 2025
Had to prime the interior of the air intake by brush. Tried with the airbrush but the paint was just pooling
24
April 12, 2025
Prepared the ordnance for painting
25
April 12, 2025

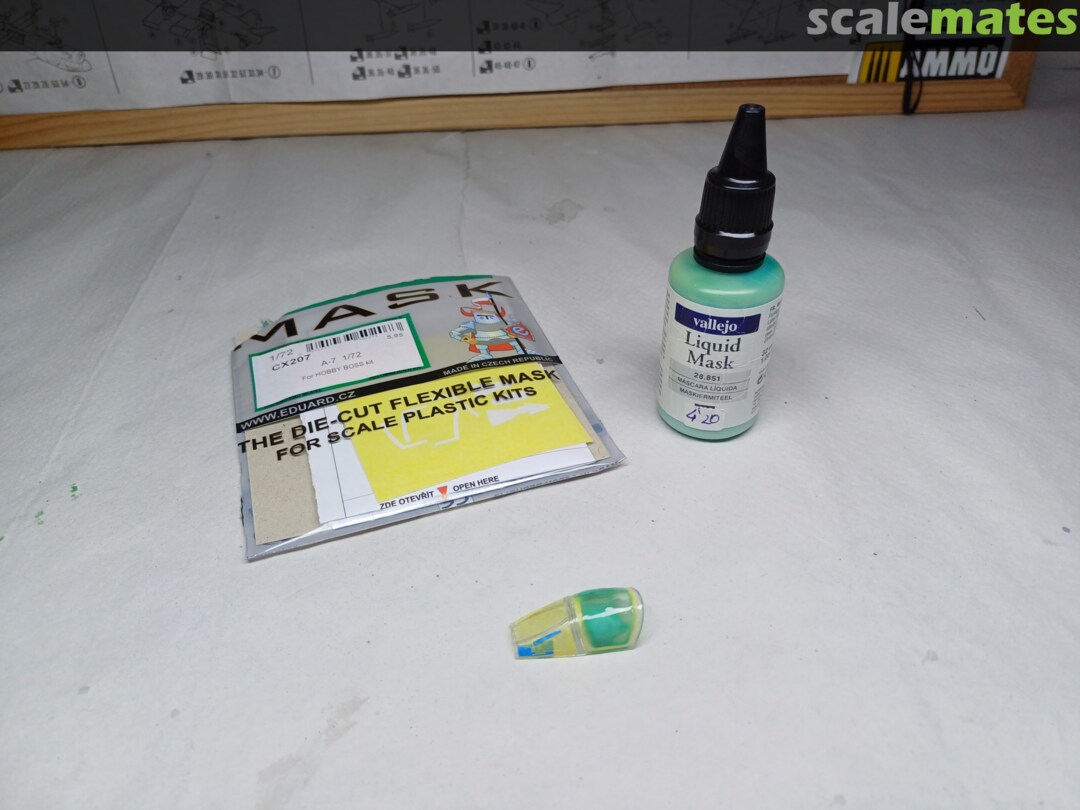

Canopy masked
26

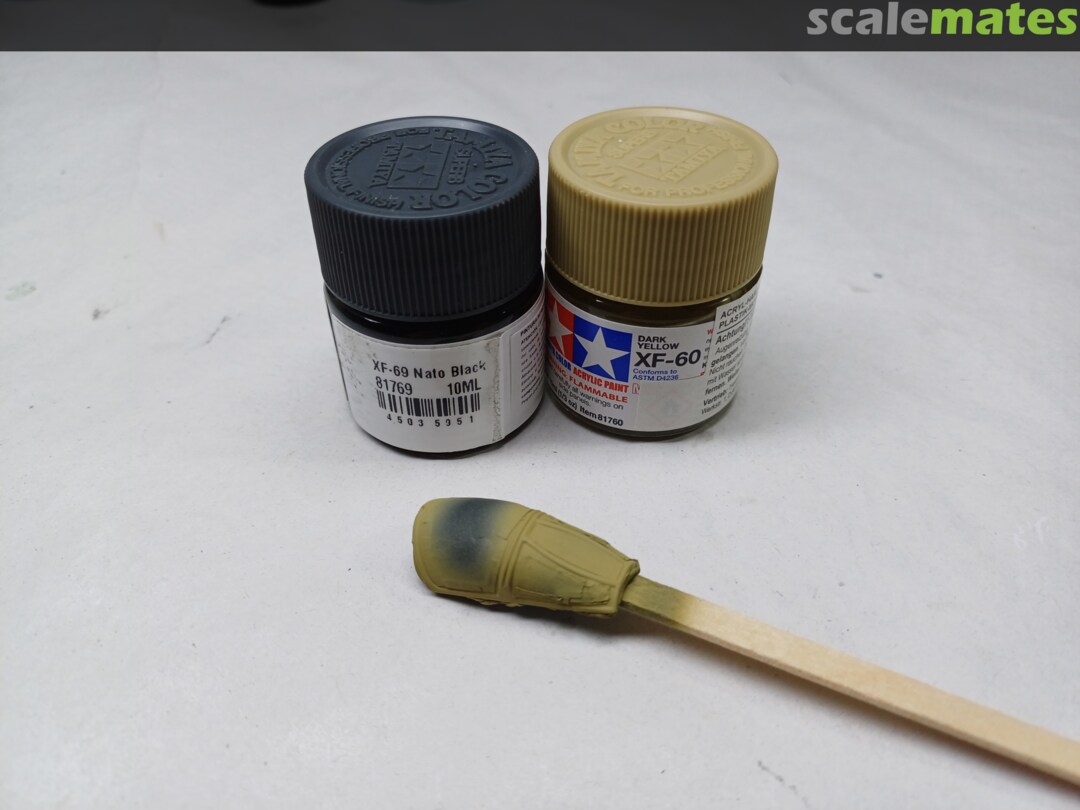

April 12, 2025
Interior painted black and dark yellow for the insulator
27
April 12, 2025

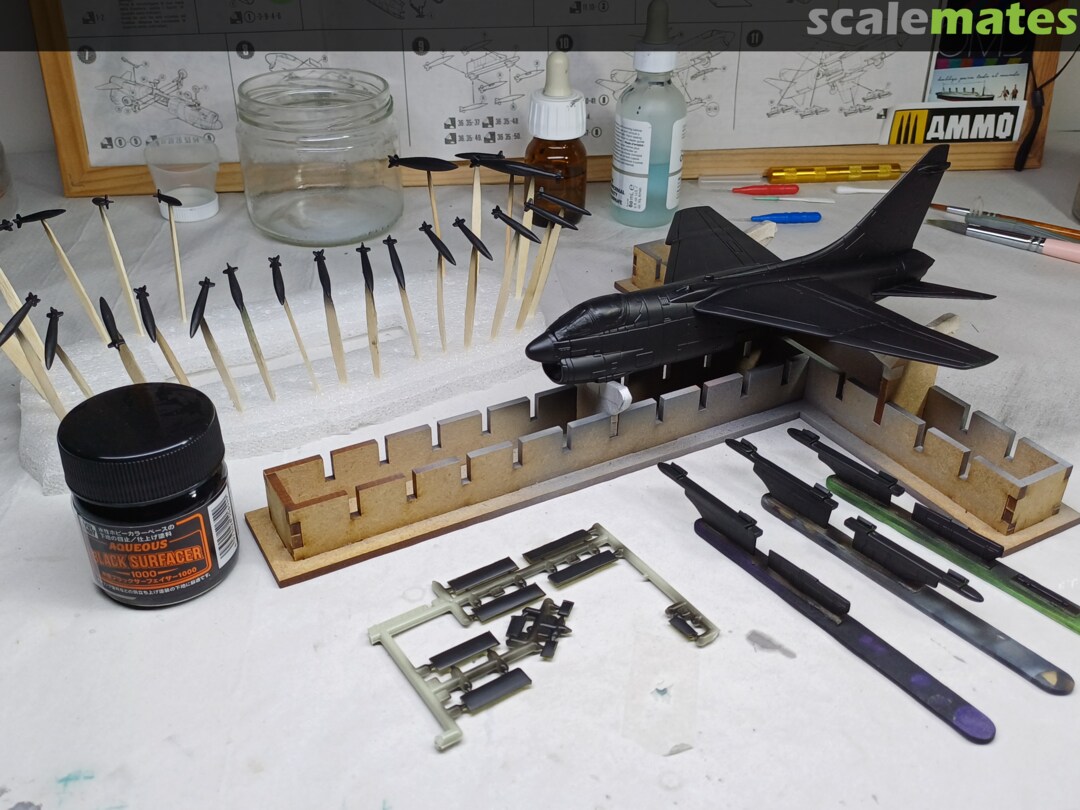

Ready for priming
28
April 12, 2025
And the painting process has started
29

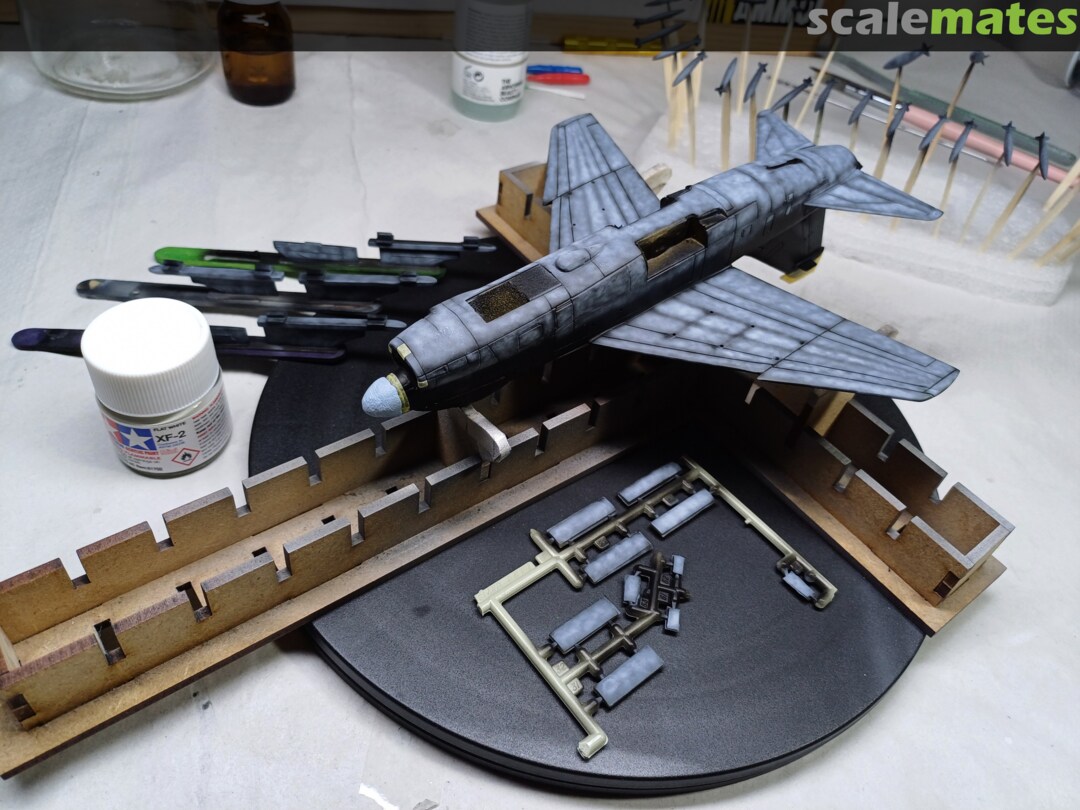

April 21, 2025
White marbling for the underside. For the top I will try a different approach
30
April 21, 2025
Underside painted with a mix of XF-55 (66%) and XF-2 (33%)
31
April 21, 2025
A couple of coats of gloss to protect it when I mask it and paint the top side
32
May 28, 2025
Lower side masked (not taking any chances here 😄)
33
May 28, 2025

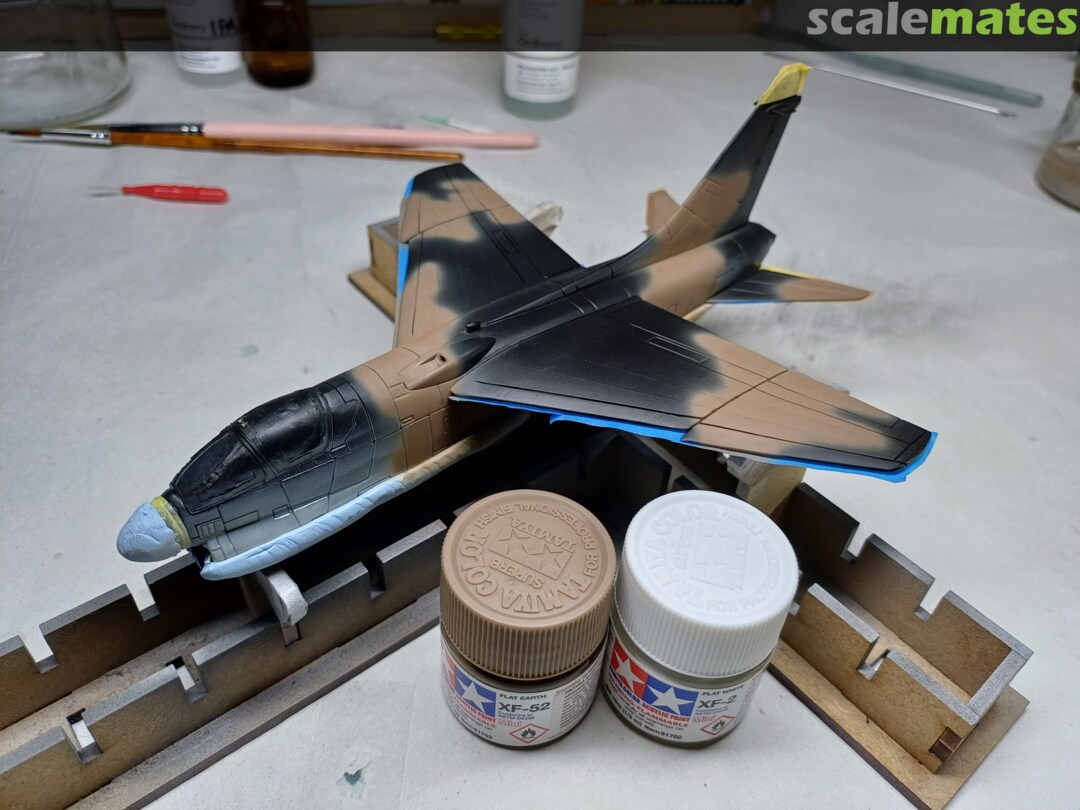

Decided on XF52 after looking at many online photos, I like the result
34
May 28, 2025
And meant to do highlights, but they are not noticeable at all... I might have another go at it
35
May 28, 2025

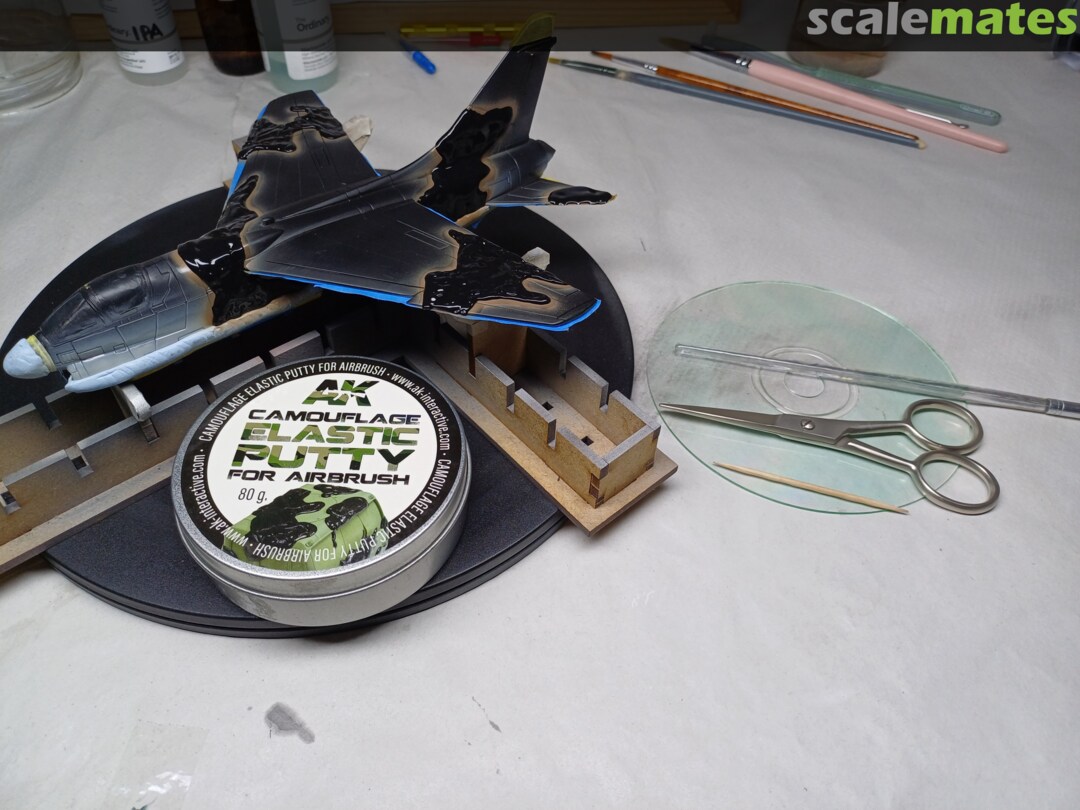

Brown masked
36
May 28, 2025

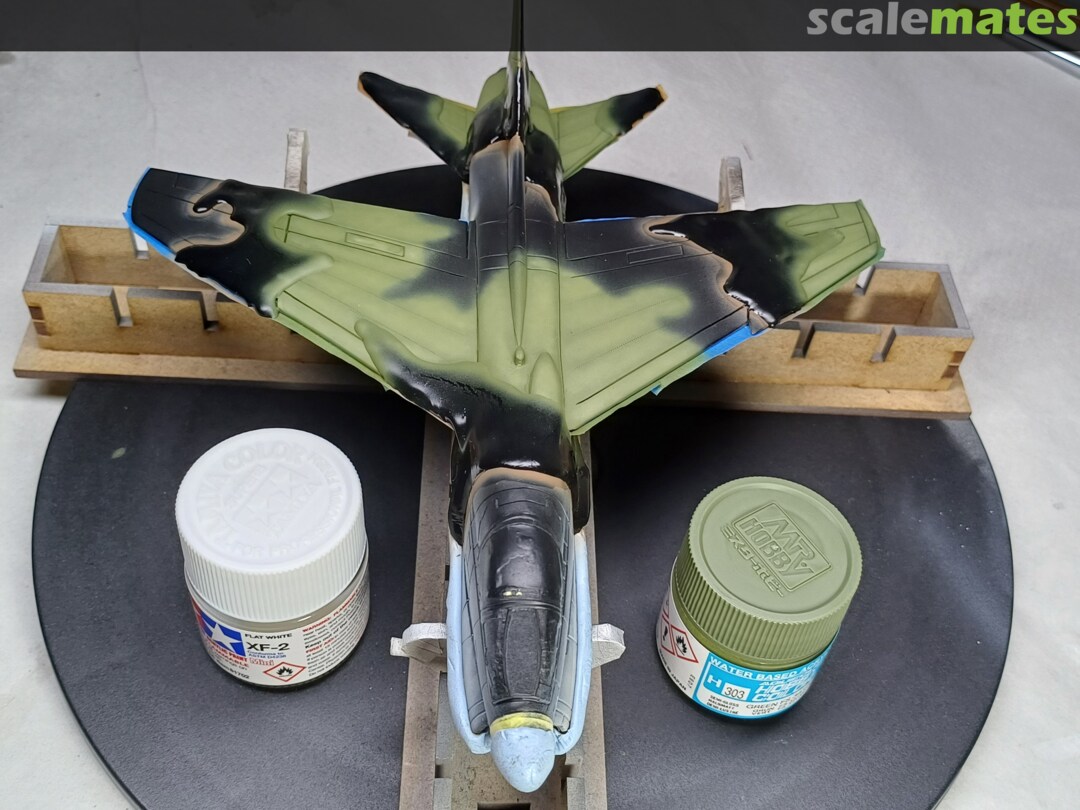

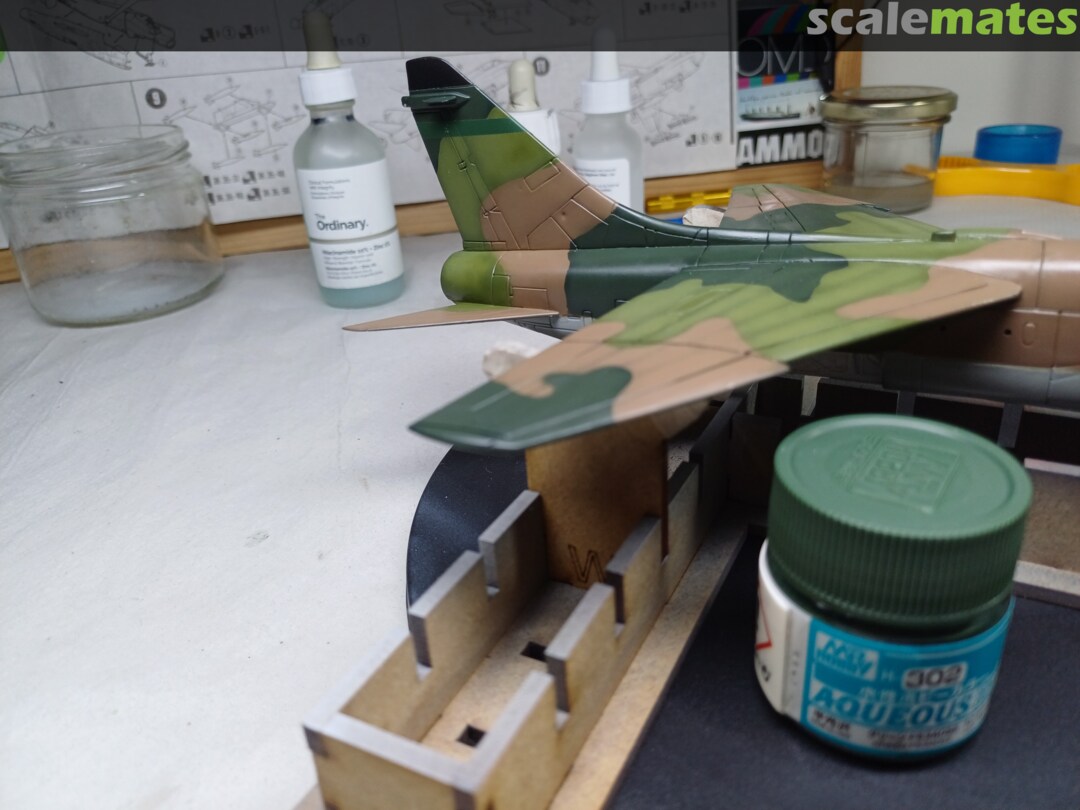

H303 applied
37
May 28, 2025
And highlights again
38
June 29, 2025

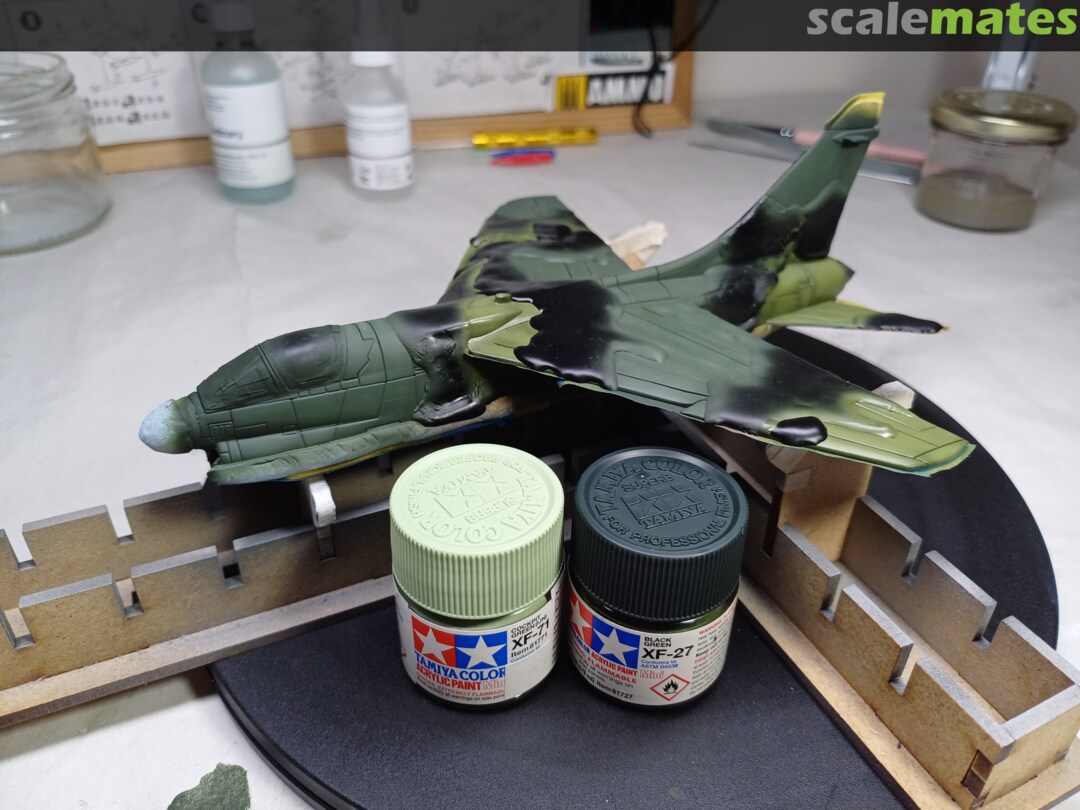

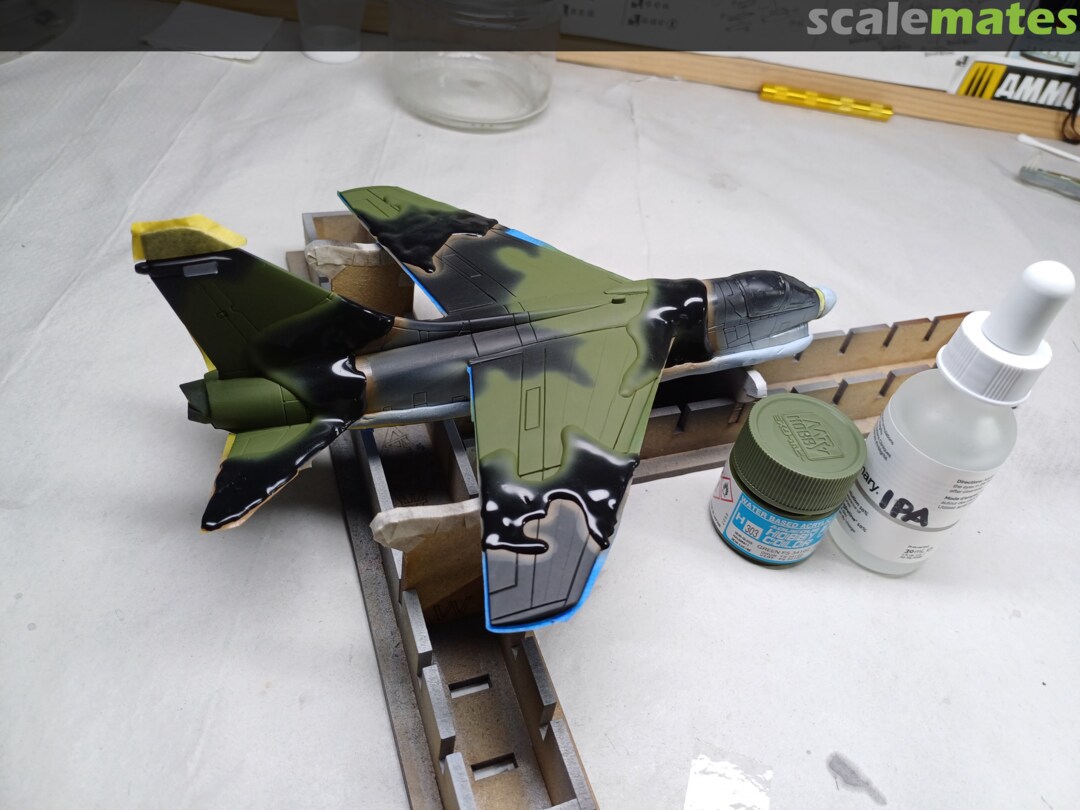

The last colour of the camo, XF27
39
June 29, 2025
Highlights again
40
June 29, 2025
Decided to paint the green band on the tail instead of using the decal
41
June 29, 2025

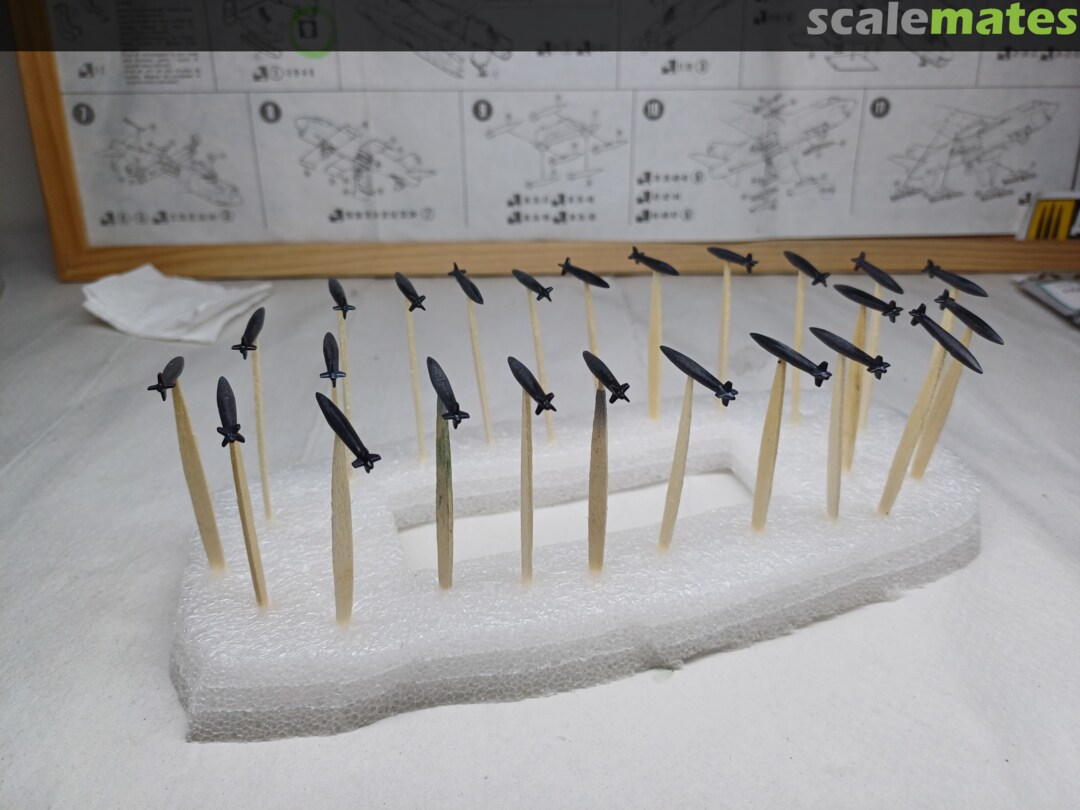

Ordnance painted in olive drab
42
June 29, 2025

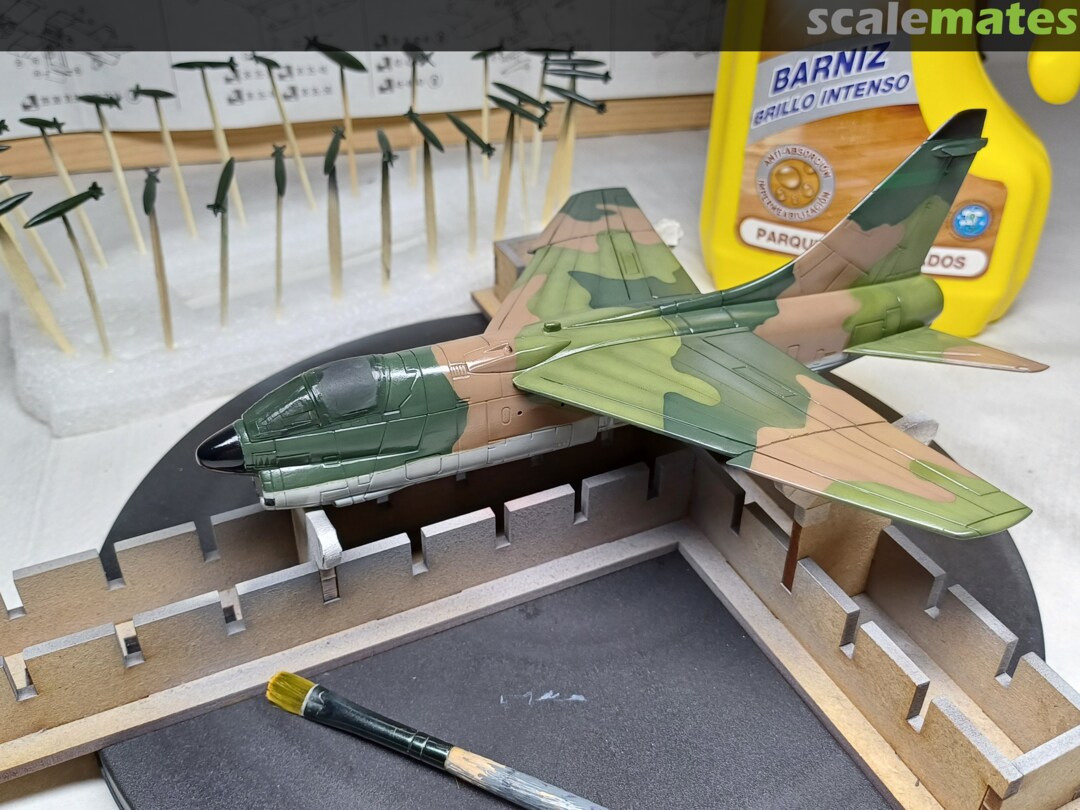

And the painting is (finally) finished 🙂. Coat of gloss on and next will be the decals
43

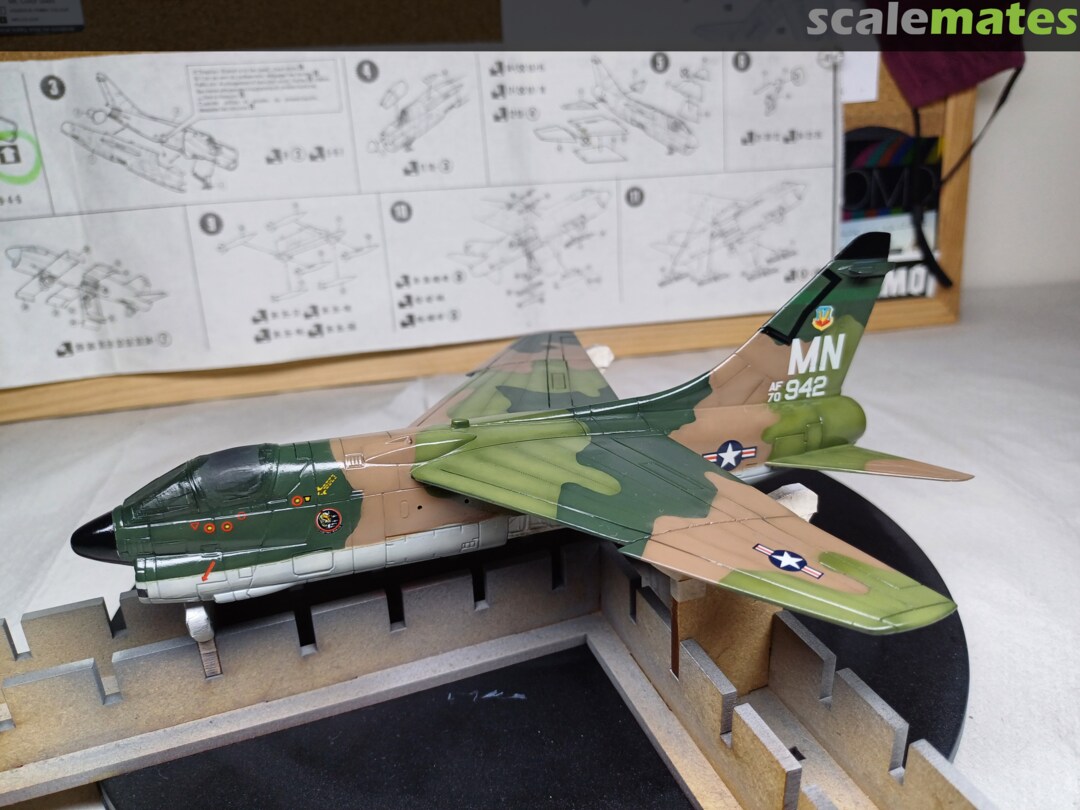

July 29, 2025

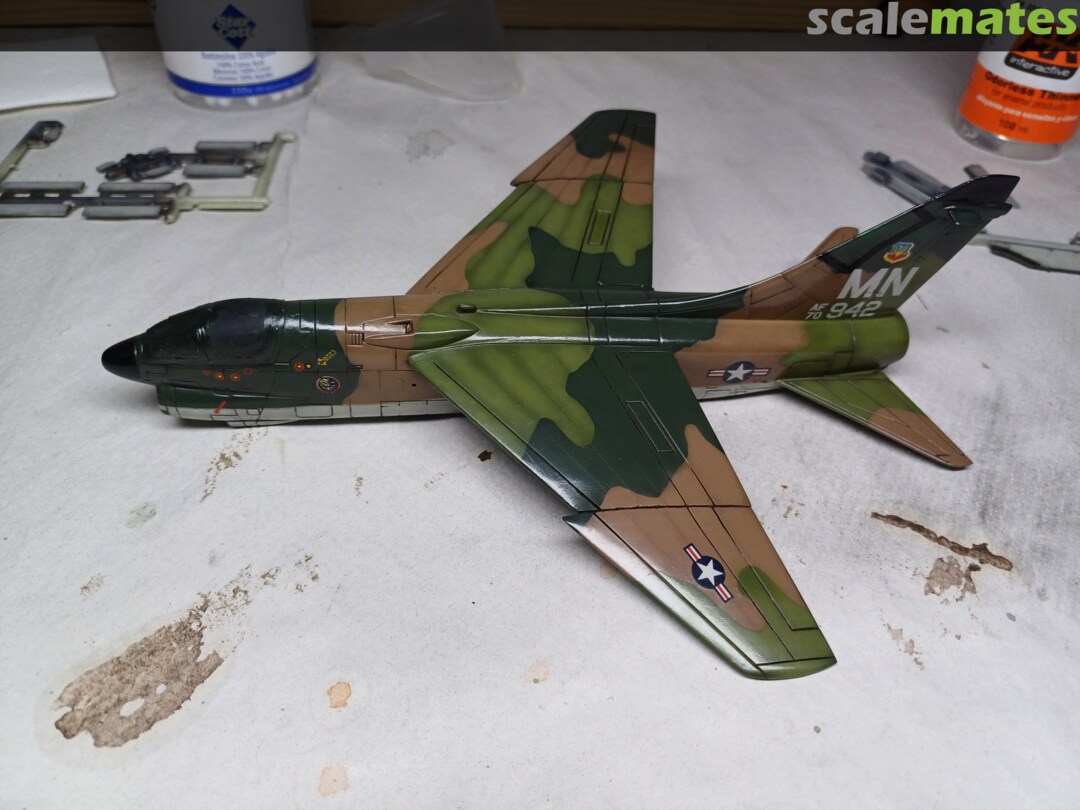

Decals on
44
July 29, 2025

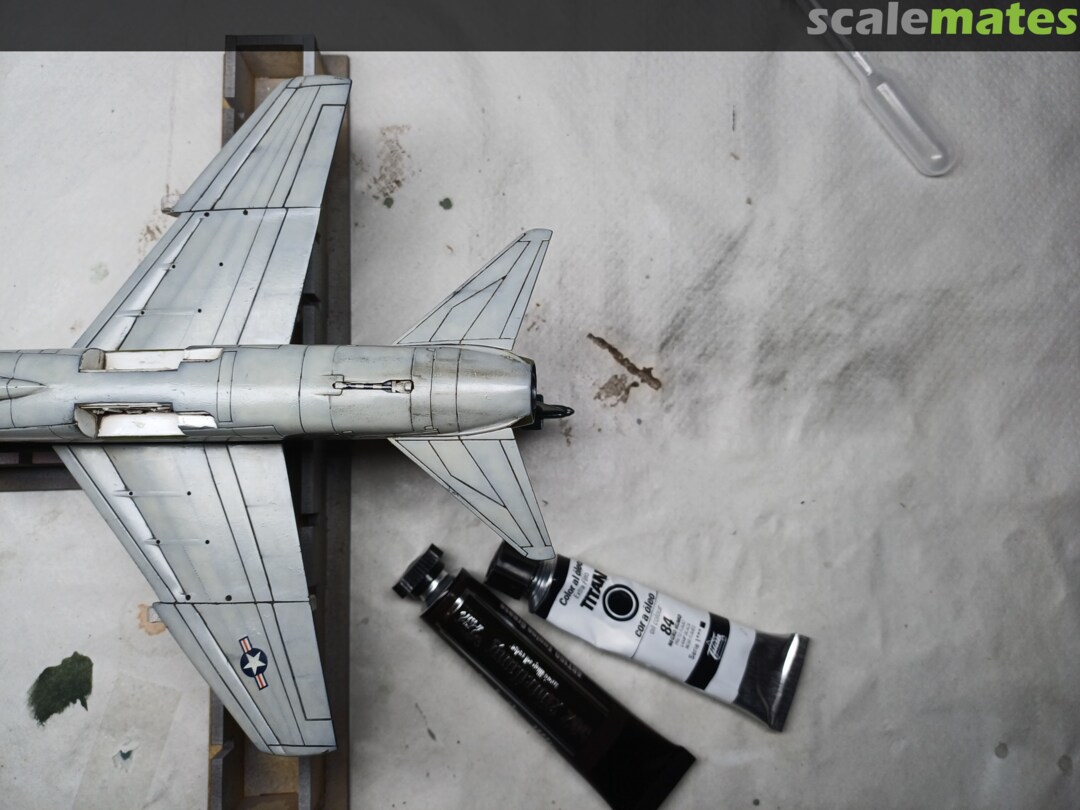

Oil wash applied...
45
July 29, 2025
...and removed
46

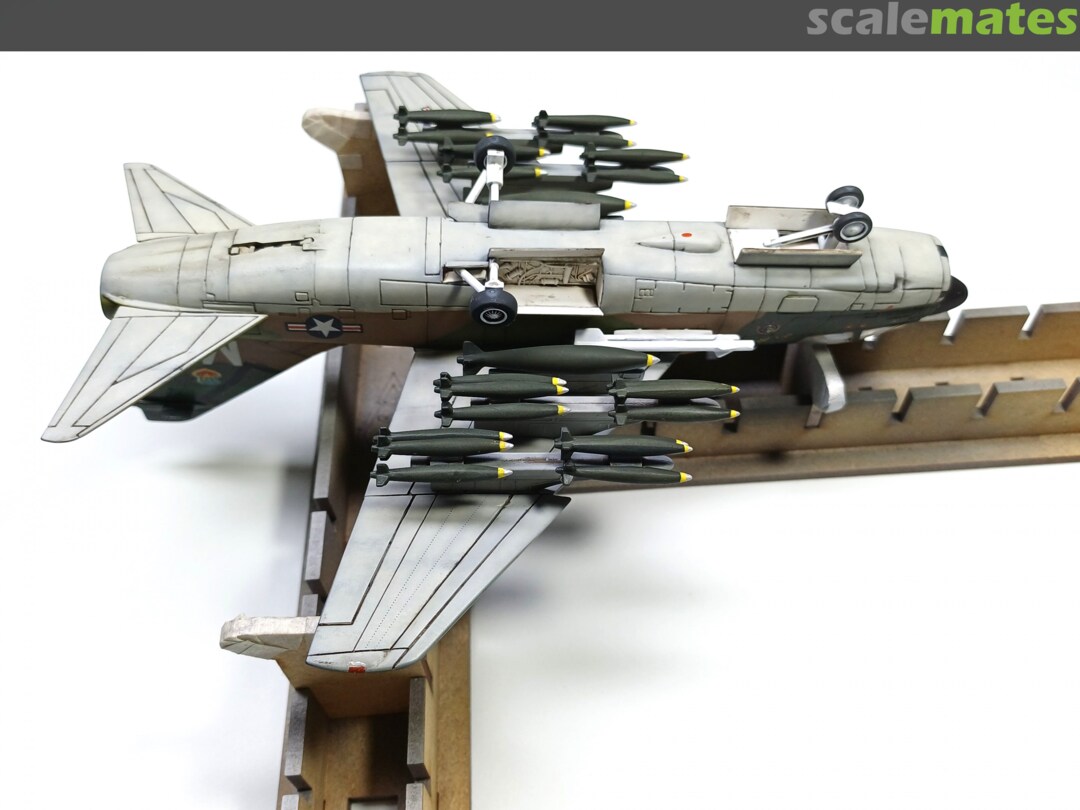

July 29, 2025

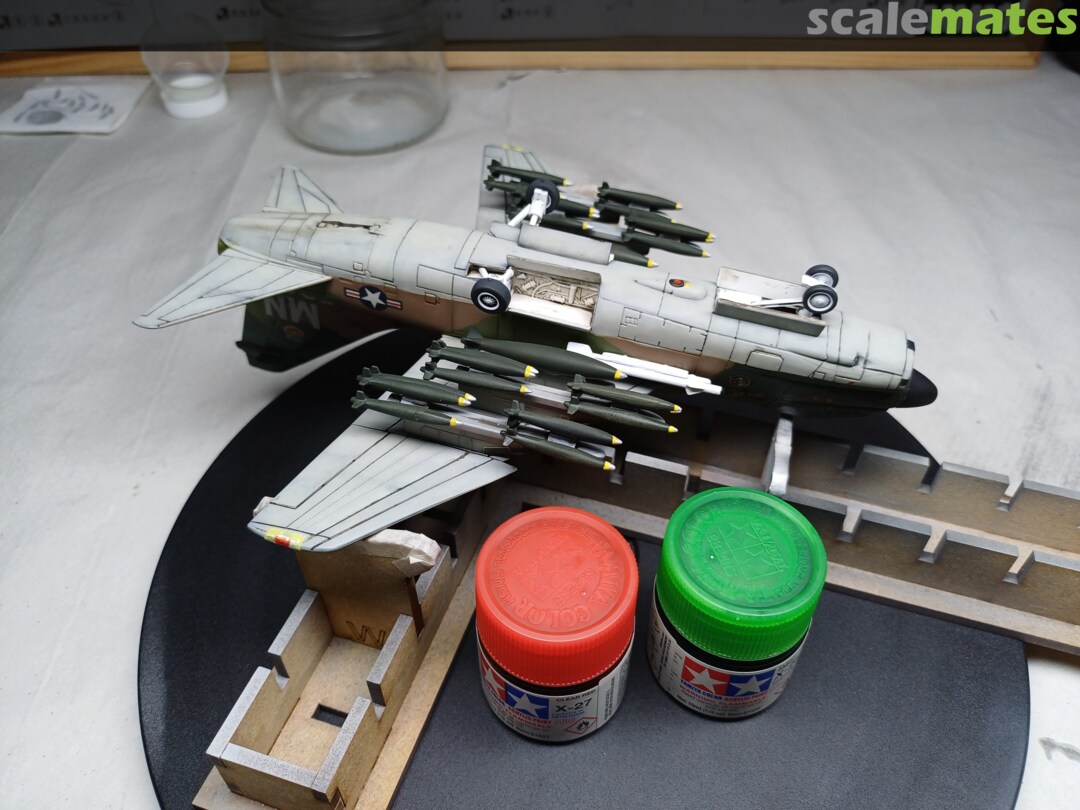

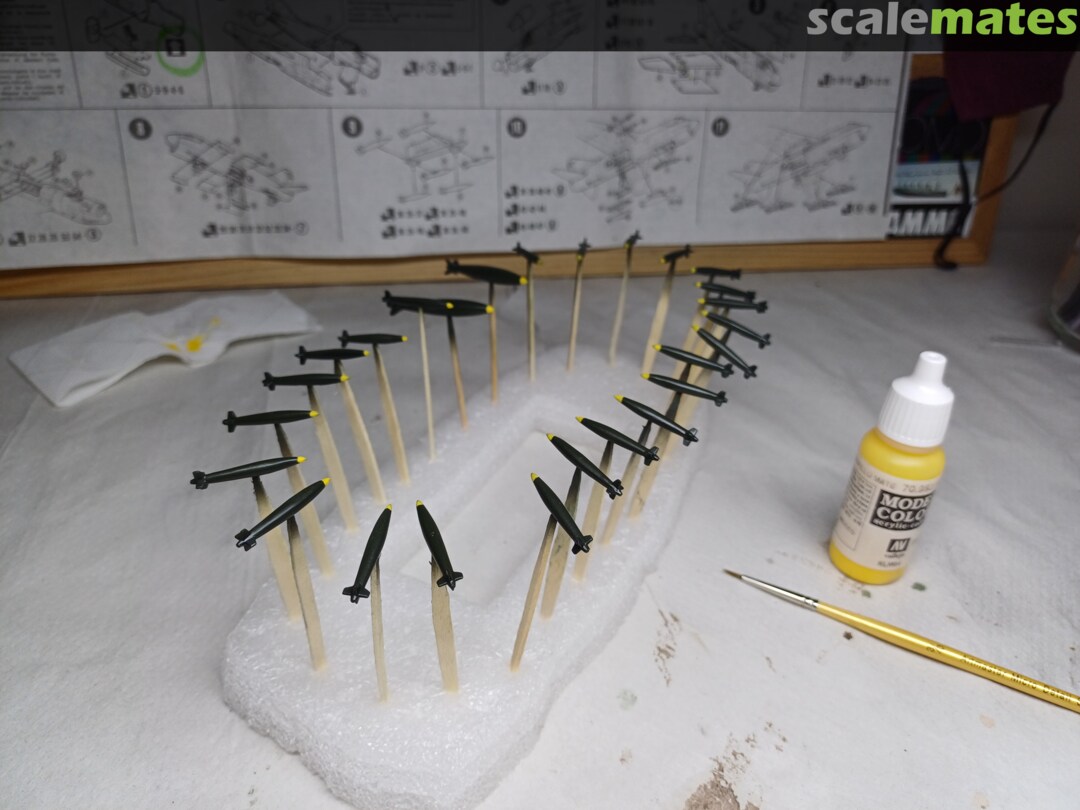

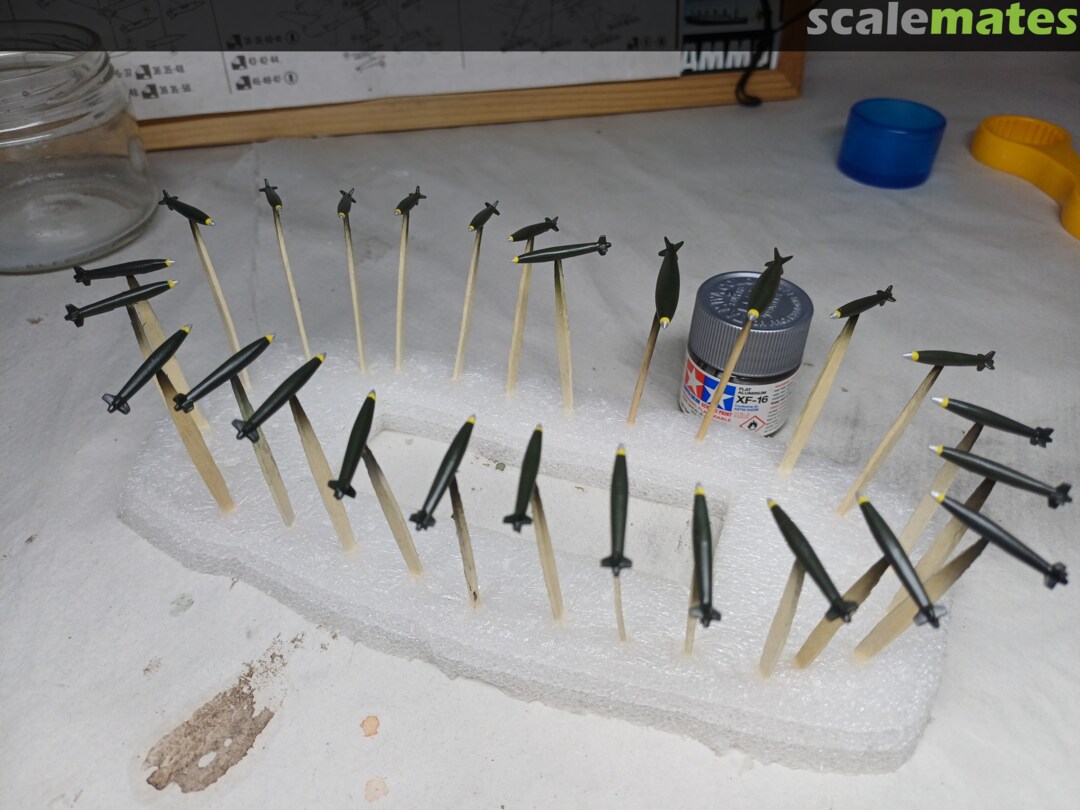

Painting the yellow rings on the bombs
47
July 29, 2025
And the fuses
48
July 29, 2025
A bit of weathering
49
July 29, 2025

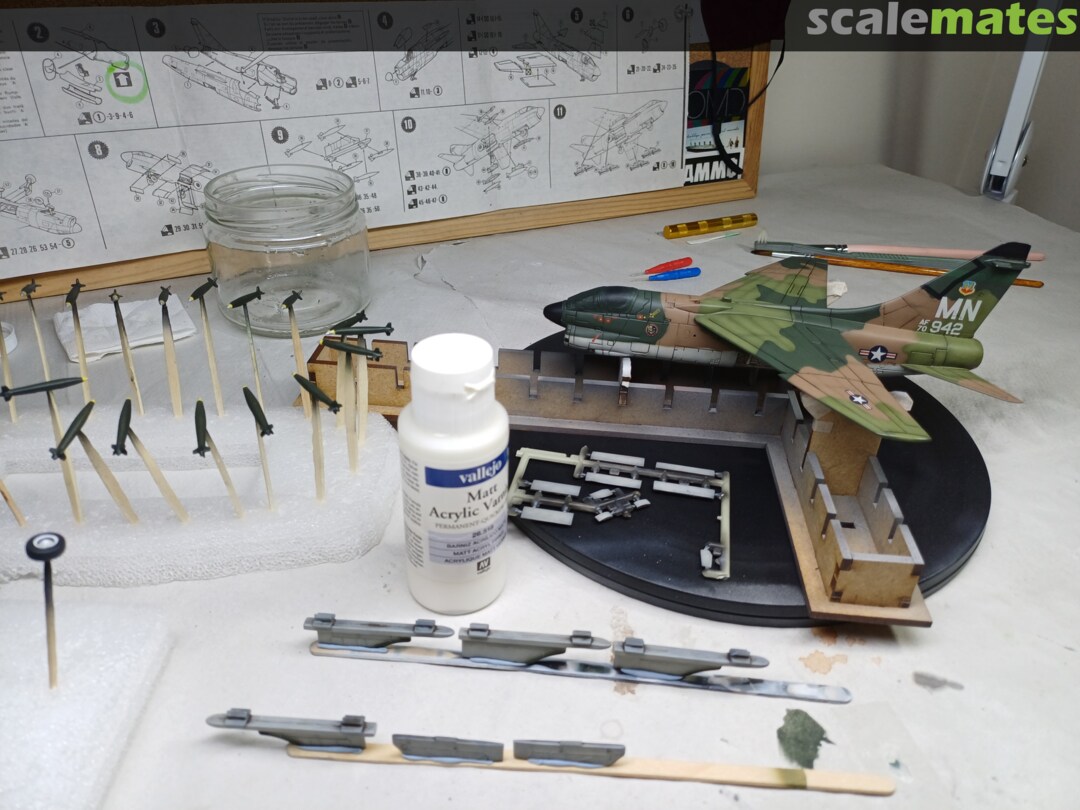

And a coat of matt varnish on everything to seal it
50
August 12, 2025

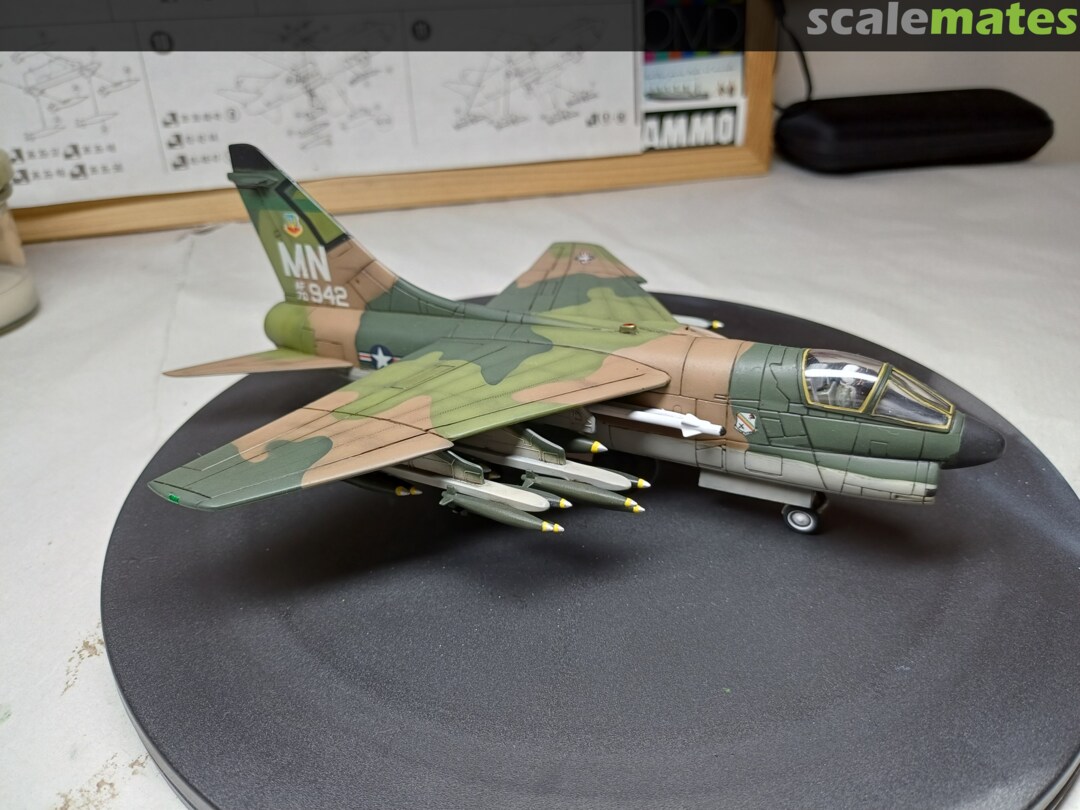

A bit of post shading with Tamiya smoke
51
August 12, 2025
Ordnance and navigation lights
52

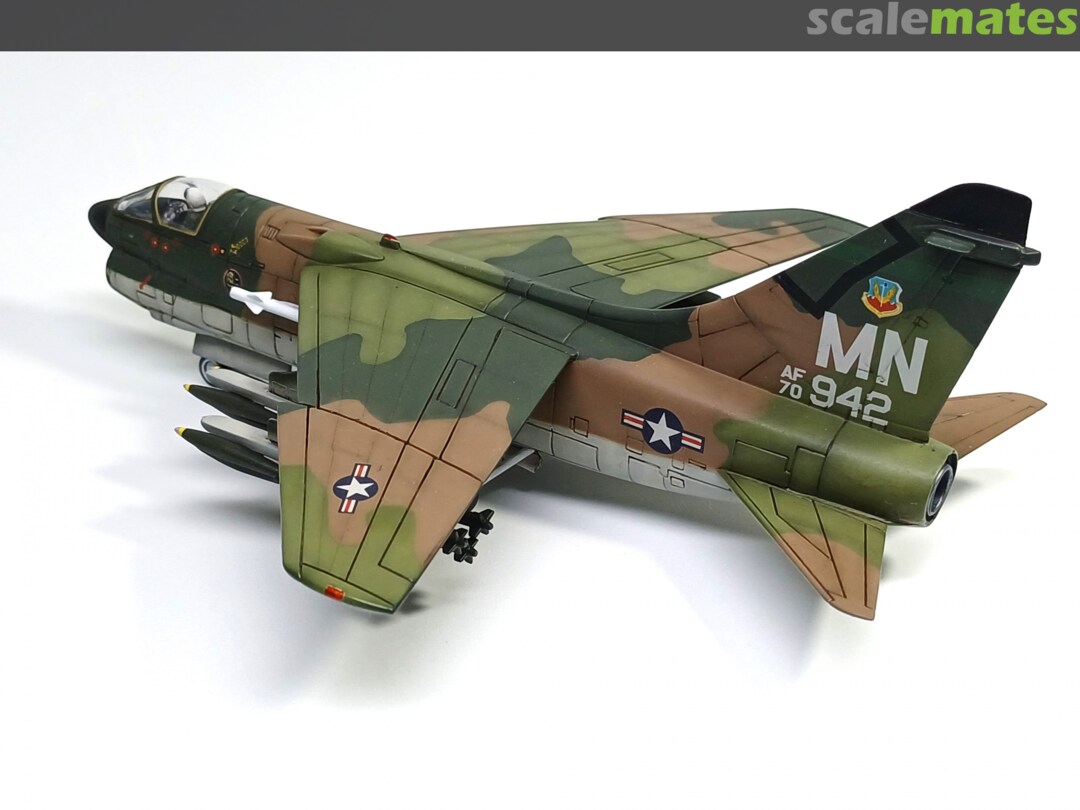

August 12, 2025

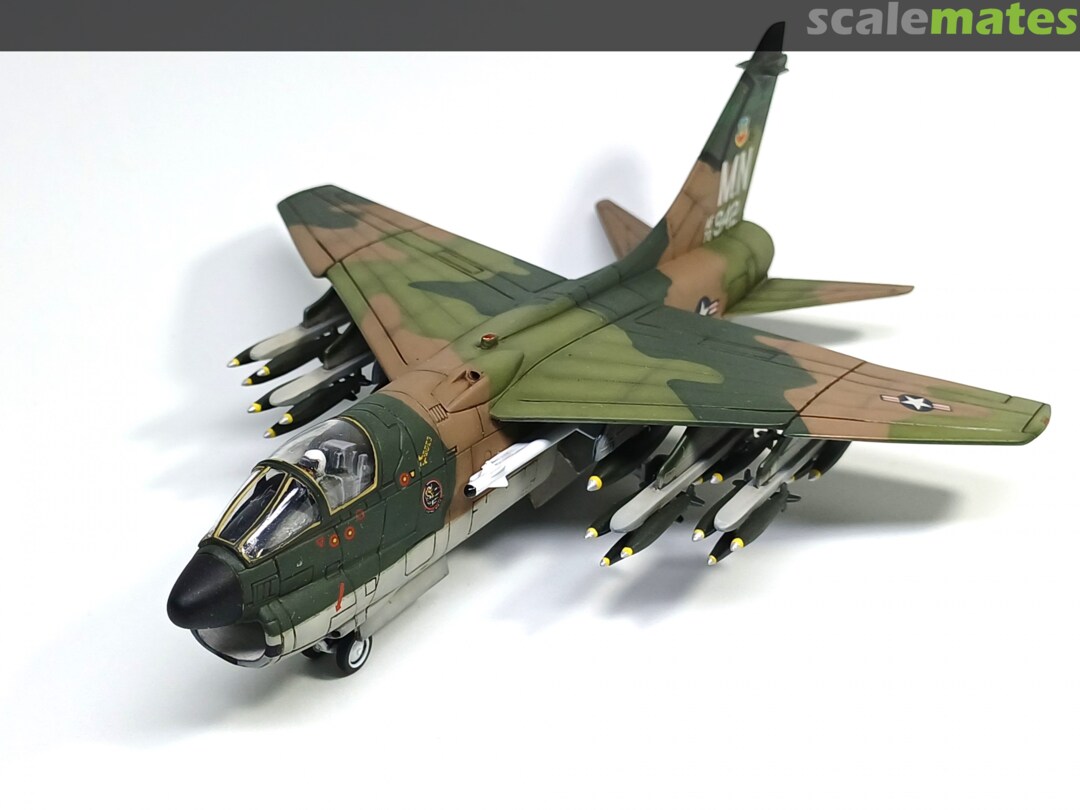

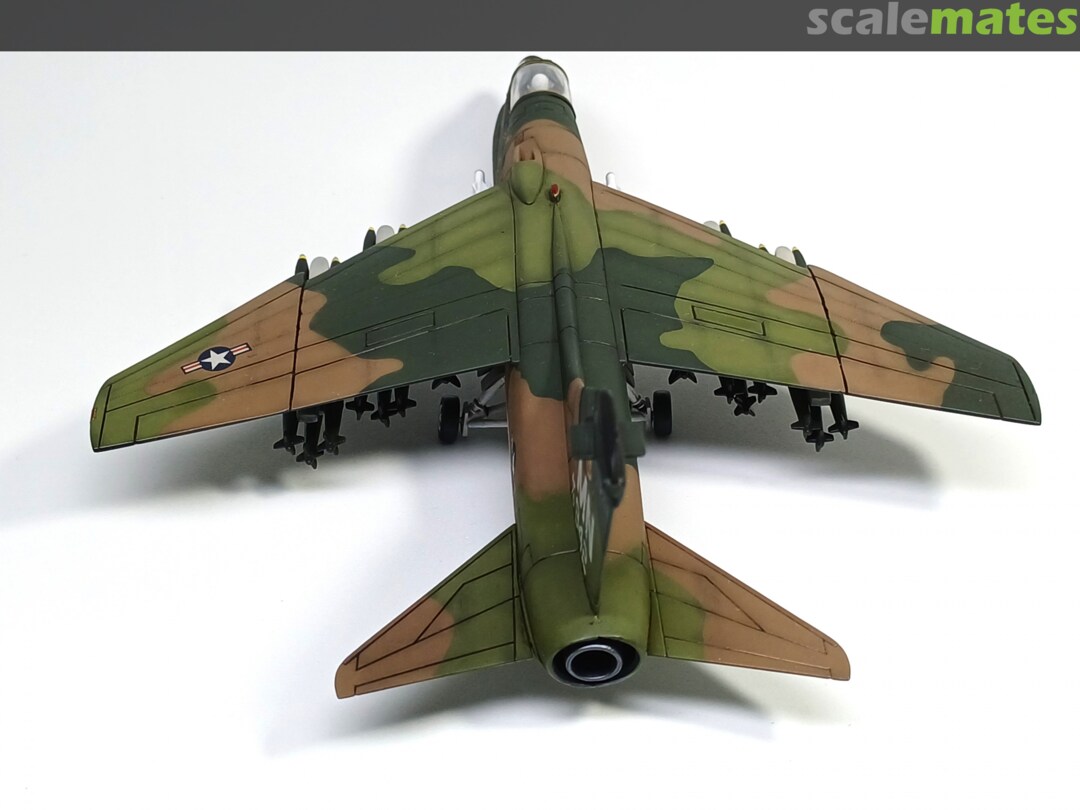

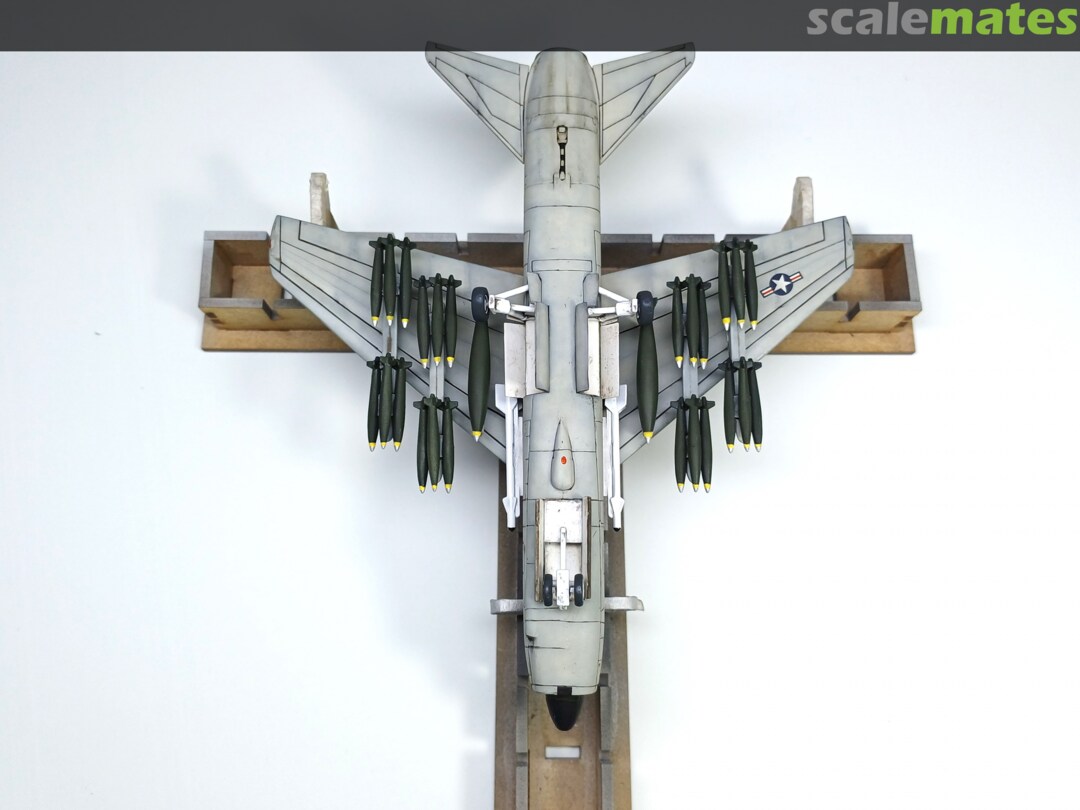

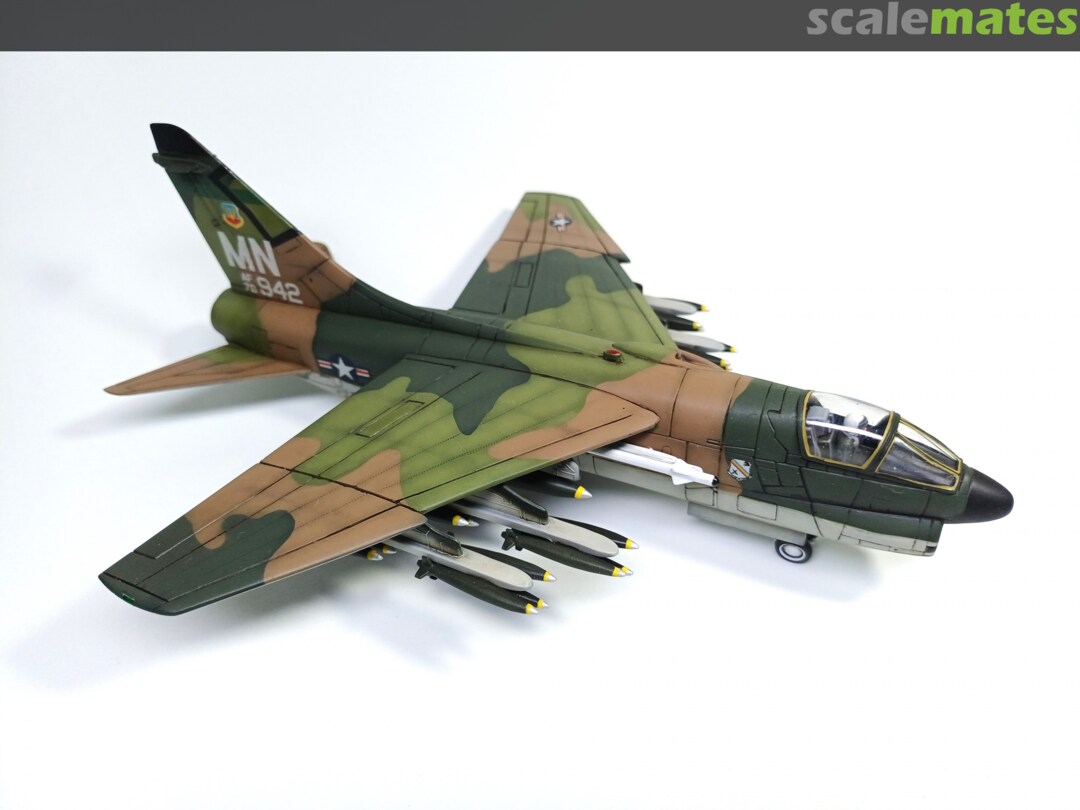

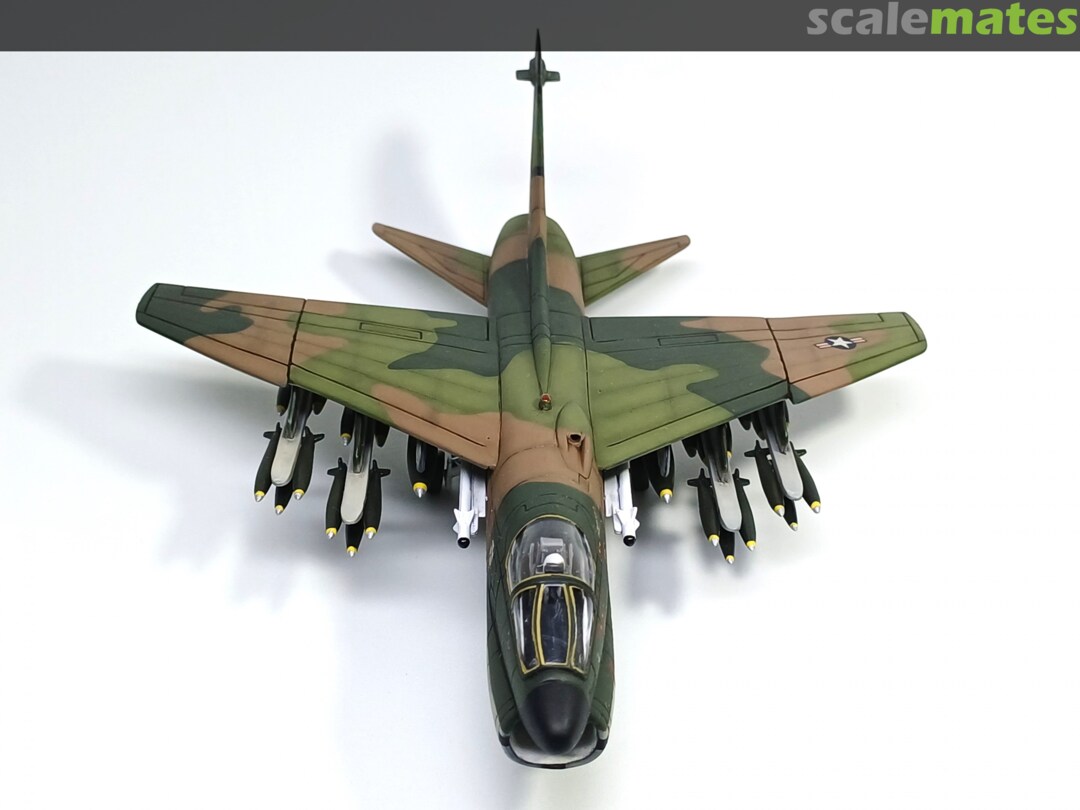

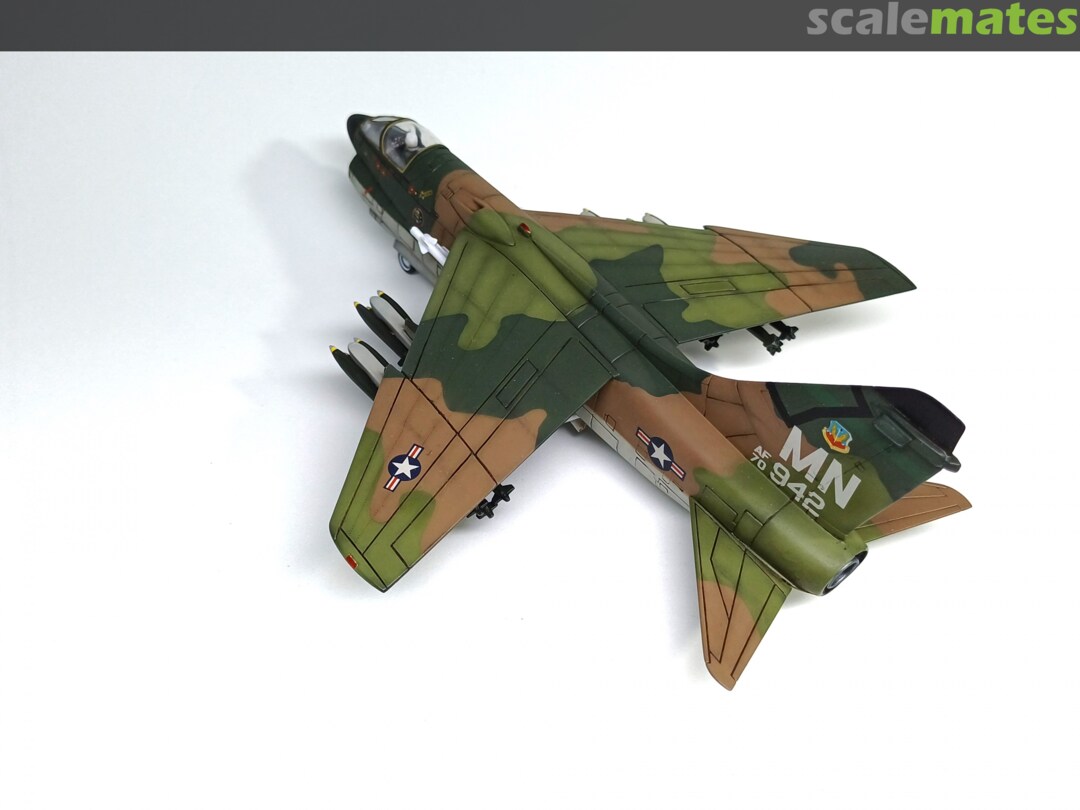

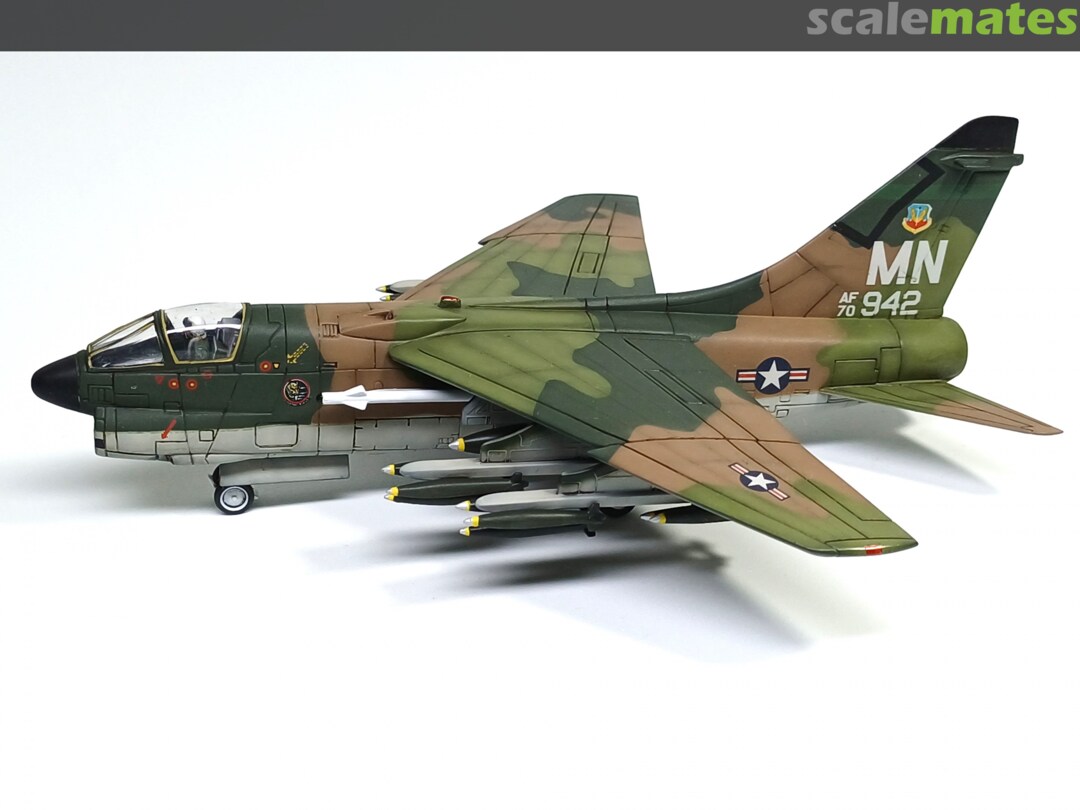

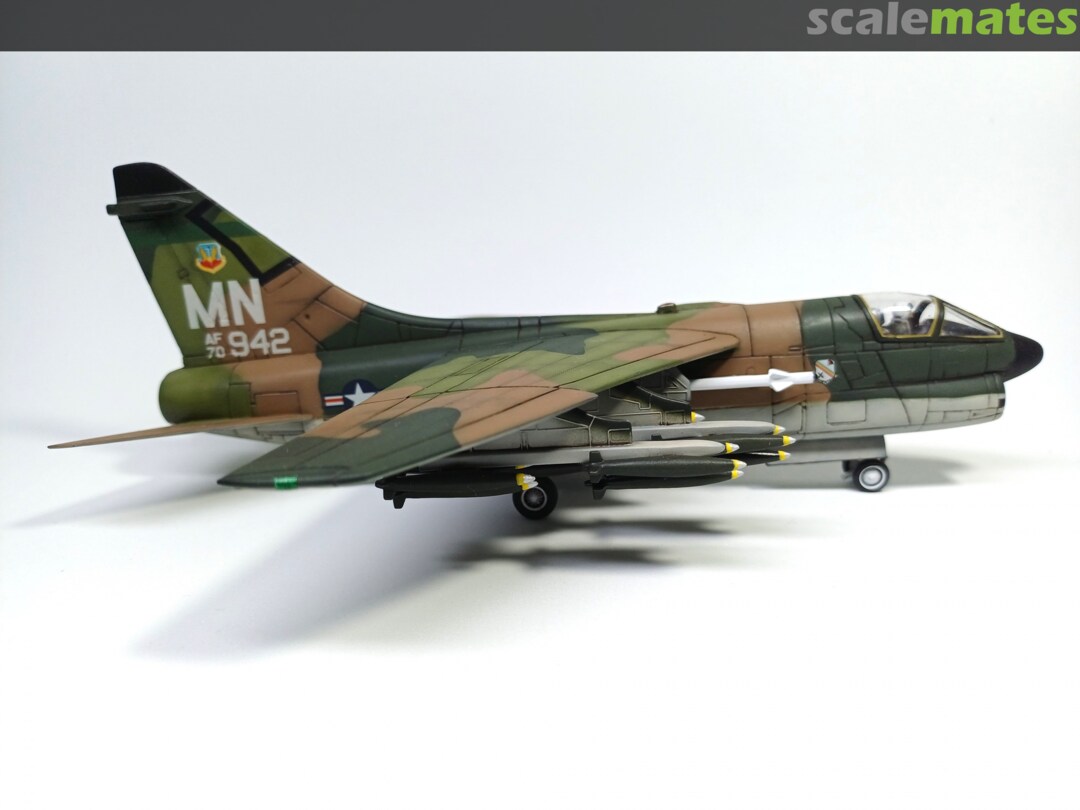

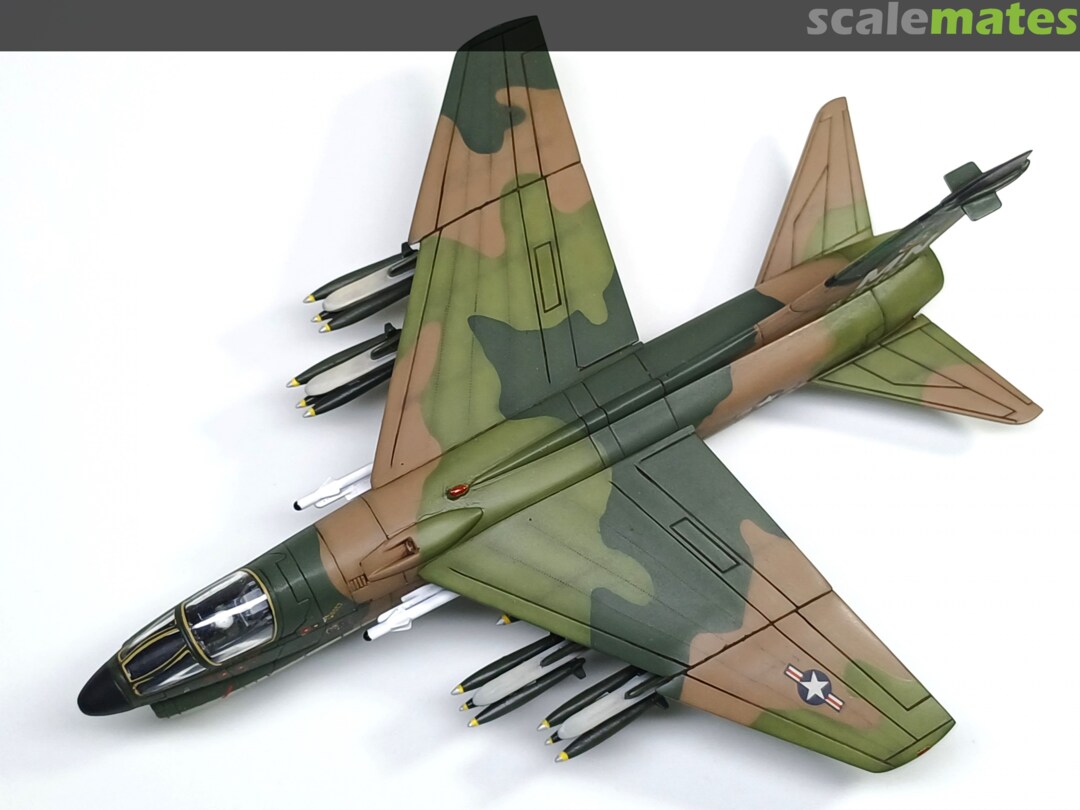

And she is finally finished! More photos to come soon
53
August 12, 2025
54
August 12, 2025
55
August 12, 2025
56
August 12, 2025
57
August 12, 2025
58
August 12, 2025
59
August 12, 2025
60
August 12, 2025
61
August 12, 2025
62
August 12, 2025
63
August 12, 2025
64
August 12, 2025
65
August 12, 2025
66
August 13, 2025
67
August 13, 2025
